The 958287-TT8M2TR is a N and P-Channel MOSFET array, which is designed for use in discrete semiconductor products. The FET feature of this product is Logic Level Gate, which provides high performance with low power consumption.

• Drain to Source Voltage (Vdss): 30V and 20V
• Continuous Drain Current (Id) @ 25°C: 2.5A
• Rds On (Max) @ Id, Vgs: 90mOhm @ 2.5A, 4.5V
• Vgs(th) (Max) @ Id: 1.5V @ 1mA
• Power-Max: 1.25W

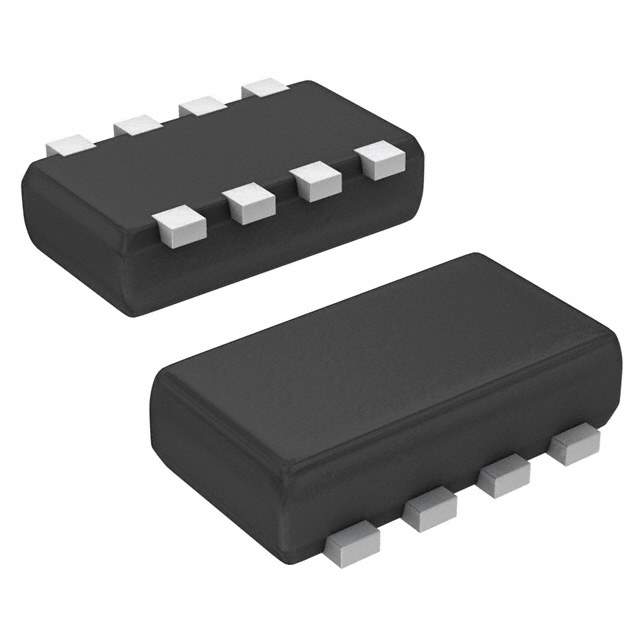

• Package/Case: 8-SMD, Flat Lead
• Supplier Device Package: 8-TSST
• Gate Charge (Qg) (Max) @ Vgs: 3.2nC @ 4.5V
• Input Capacitance (Ciss) (Max) @ Vds: 180pF @ 10V
• Temperature Range: 150°C (TJ)
• Alternative Parts: MCH3377-TL-W, EMH2801-TL-H, NTHD3133PFT1G, SI5935CDC-T1-E3, SI5933CDC-T1-E3, and SI5855CDC-T1-E3
