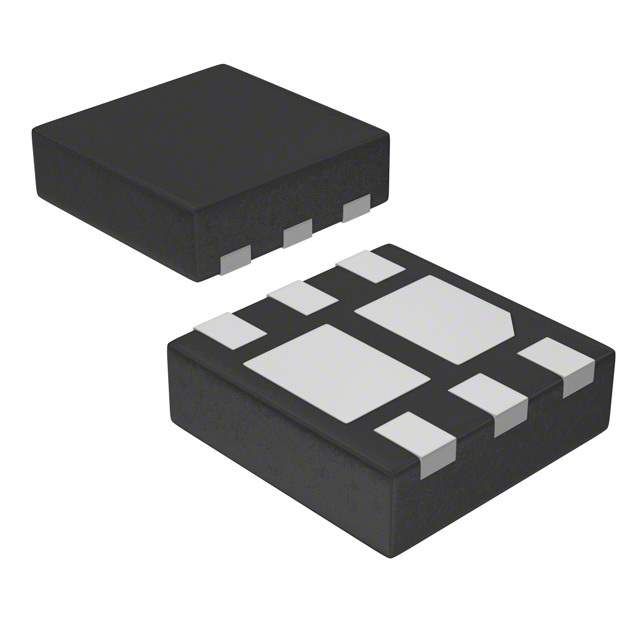

UT6JA3TCR Real Image
Same model may have multiple batches, images only for reference.

UT6JA3TCR

Part No UT6JA3TCR
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
UT6JA3TCR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr Rohm Semiconductor
Package Tape & Reel
FET Type 2 P-Channel (Dual)
FET Feature Standard
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 5A (Ta)
Rds On (Max) @ Id, Vgs 59mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id 1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds 460pF @ 10V
Power - Max 2W (Ta)
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case 6-PowerUDFN
Supplier Device Package HUML2020L8
Base Product Number UT6JA3
Other Names UT6JA3TCRCT,UT6JA3TCRTR,UT6JA3TCRDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1278561-UT6JA3TCR
Ultra Librarian 3D Model Ultra Librarian UT6JA3TCR CAD Model

Description

The UT6JA3TCR is a dual P-channel MOSFET array from Rohm Semiconductor that is suitable for use in a variety of applications such as power management and load switching.

  • Drain to Source Voltage: 20V
  • Continuous Drain Current: 5A @ 25°C
  • Maximum On-Resistance: 59mOhm @ 5A and 4.5V gate-source voltage
  • Gate Charge: 6.5nC @ 4.5V
  • Input Capacitance: 460pF @ 10V drain-source voltage
