Products specifications

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MH5
Package Tape & Box (TB)
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 44 mA @ 120 Hz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.256" (6.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358169-25MH522MEFCT56.3X5
Ultra Librarian 3D Model Ultra Librarian 25MH522MEFCT56.3X5 CAD Model

Description

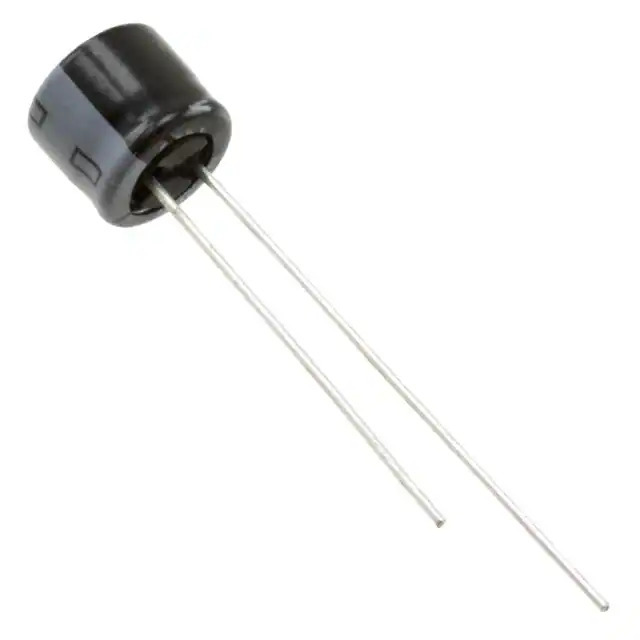

The Rubycon MH5 series capacitors are aluminum electrolytic capacitors with a capacitance of 22 µF and a voltage rating of 25 V.

  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Voltage - Rated: 25 V
  • Applications: General Purpose
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime @ Temp.: 1000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 44 mA @ 120 Hz
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 0.098" (2.50mm)
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.256" (6.50mm)
  • Surface Mount Land Size: -
