Same model may have multiple batches, images only for reference.

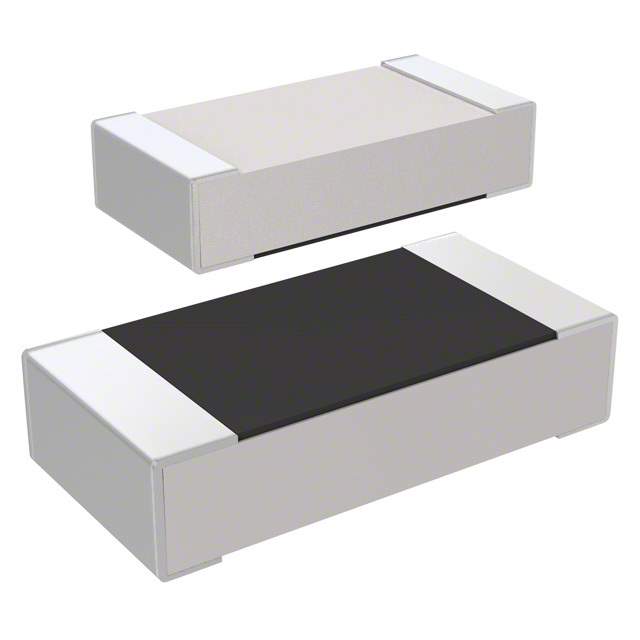

RUT3216FR220CS Real Image
Same model may have multiple batches, images only for reference.

RUT3216FR220CS

Part No RUT3216FR220CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES 0.22 OHM 1% 1/3W 1206  /  220 mOhms ±1% 0.333W, 1/3W Chip Resistor 1206 (3216 Metric) Current Sense, Moisture Resistant Thick Film
Datasheet
RUT3216FR220CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RUT
Package Tape & Reel
Resistance 220 mOhms
Tolerance ±1%
Power (Watts) 0.333W, 1/3W
Composition Thick Film
Features Current Sense, Moisture Resistant
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1276-6176-2,1276-6176-1,1276-6176-6
Standard Package 5,000
Win Source Part Number 1094580-RUT3216FR220CS
Ultra Librarian 3D Model Ultra Librarian RUT3216FR220CS CAD Model

Description

The RUT3216FR220CS is a chip resistor surface mount component from Samsung Electro-Mechanics.

  • Resistance: 220 mOhms
  • Power Rating: 0.333W
  • Tolerance: ±1%
  • Temperature Coefficient: ±150ppm/°C
  • Type: Thick film resistor
  • Application: Current sensing
  • Moisture Resistant: Yes
  • Package: 1206 (3216 Metric)
  • Height: 0.026" (0.65mm)
  • Packaging: Tape and reel
  • Standard Package: 5,000
  • Temperature Range: -55°C to 155°C
  • Cross-Reference: ERJ-8BQFR22V, ERJ-8RQFR22V, RL1206FR-070R22L, RL1206FR-7W0R22L, and PT1206FR-070R22L
