Same model may have multiple batches, images only for reference.

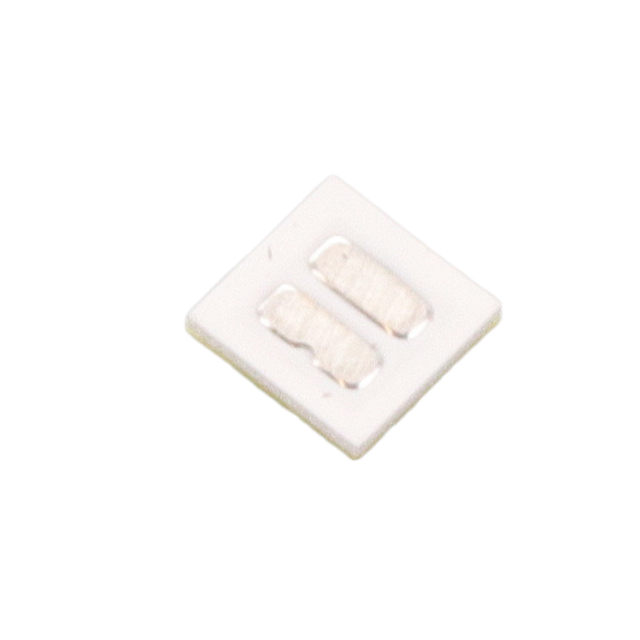

SCP7RTJ5HEL1RLQF6E Real Image
Same model may have multiple batches, images only for reference.

SCP7RTJ5HEL1RLQF6E

Part No SCP7RTJ5HEL1RLQF6E
Manufacturer Samsung
Catalog LED Lighting - White
Description LED  /  LED Lighting series White, Cool 5000K 5-Step MacAdam Ellipse 2.9V 700mA 120° 1111 (2828 Metric)
Datasheet
SCP7RTJ5HEL1RLQF6E Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH231B
Package Tape & Reel
Color White, Cool
CCT (K) 5000K 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 340lm (310lm ~ 370lm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 167 lm/W
CRI (Color Rendering Index) 70
Current - Max 2A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1111 (2828 Metric)
Supplier Device Package SMD
Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.019" (0.48mm)
Thermal Resistance of Package 2°C/W
Base Product Number SCP7RTJ5
Other Names SCP7RTJ5HEL1RLQF6E,1510-2310-1,1510-2310-2,1510-2310-6
Standard Package 2,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240182-SCP7RTJ5HEL1RLQF6E
Ultra Librarian 3D Model Ultra Librarian SCP7RTJ5HEL1RLQF6E CAD Model

Description

The Samsung Semiconductor LH231B LED Lighting - White is an optoelectronic component that is ideal for lighting applications.

  • Viewing Angle: 120 degrees
  • Voltage-Forward (Vf): 2.9V
  • Thermal Resistance: 2 degrees Celsius per watt
  • Mounting: SMD (SMT) mountable
  • Color Temperature: 5000K 5-Step MacAdam Ellipse
  • Flux: 340lm (310lm ~ 370lm) @ 85°C
  • Color Rendering Index (CRI): 70
  • Lumens/Watt: 167 lm/W
  • Packaging: tape and reel
  • Package/Case Size: 1111 (2828 Metric)
