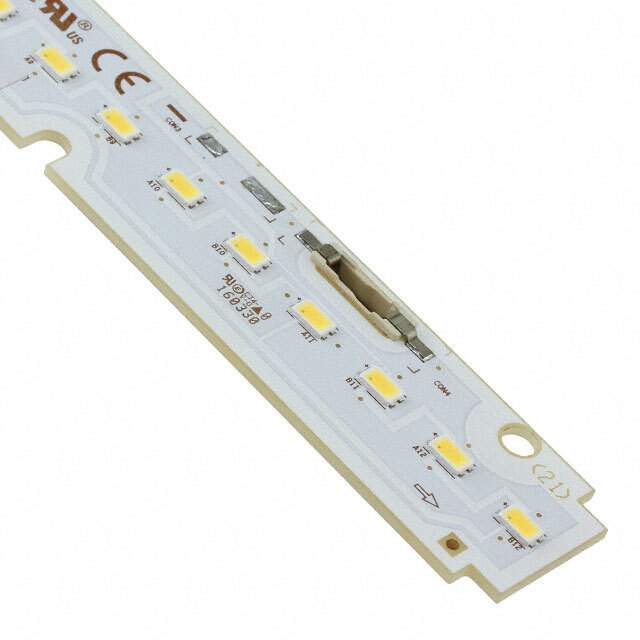

SI-B8U07228HWW Real Image
Same model may have multiple batches, images only for reference.

SI-B8U07228HWW

Part No SI-B8U07228HWW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED SLIM 3500K 1090LM BACK WIRE / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SI-B8U07228HWW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-S282H
Package Tray
Product Status Not For New Designs
Type LED Module
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1090lm (Typ)
Current - Test 300mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 23.4V
Lumens/Watt @ Current - Test 155 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 279.70mm L x 23.80mm W
Height 7.40mm
Lens Type Flat
Base Product Number SI-B8
Standard Package 128
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240398-SI-B8U07228HWW
Ultra Librarian 3D Model Ultra Librarian SI-B8U07228HWW CAD Model

Description

The LT-S282H is an LED module component from Samsung Semiconductor's LT-S282H series.

  • Color: Warm white
  • CCT: 3500K 3-Step MacAdam Ellipse
  • Viewing Angle: 115 degrees
  • Voltage-Forward (Vf): 23.4V
  • Maximum Current: 540mA
  • Current-Test: 300mA
  • Win Source Part Number: 1240398-SI-B8U07228HWW
  • Height: 7.40mm
  • Luminous Flux (Typ): 1090lm
  • For New Designs: No
