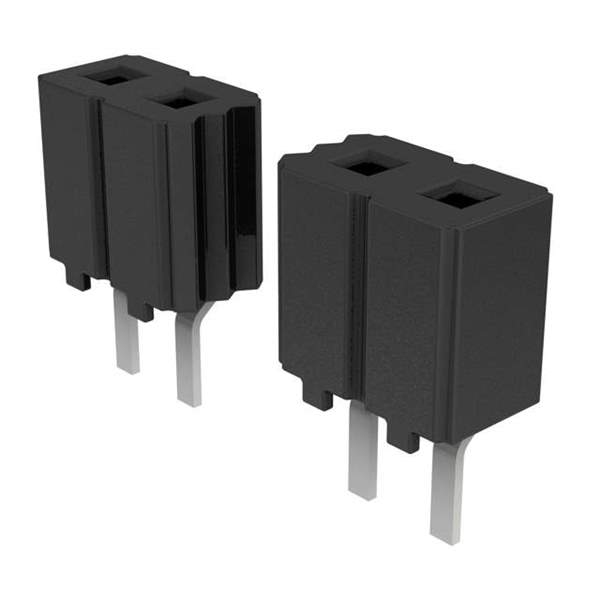

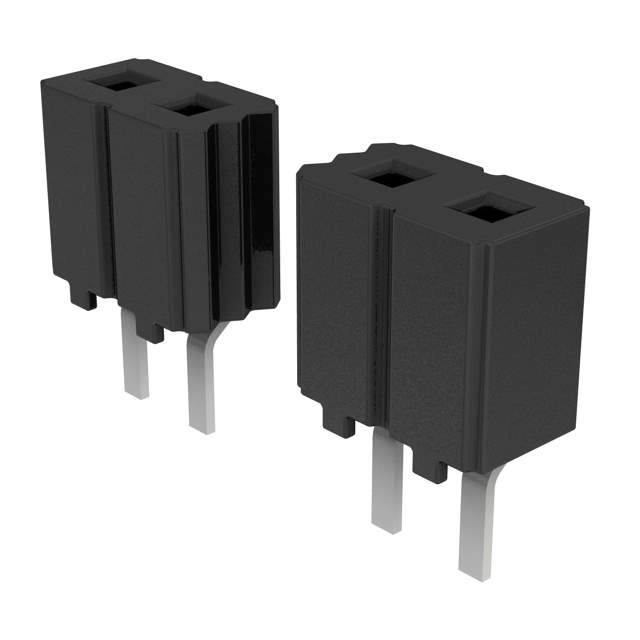

Same model may have multiple batches, images only for reference.

CES-128-01-T-S

Name: CES-128-01-T-S
Brand: Samtec Inc.
SKU: 1174349
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CES-128-01-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 28POS 0.1 TIN PCB / 28 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Datasheet	CES-128-01-T-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CES
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	28
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.200" (5.08mm)
Contact Length - Post	0.128" (3.25mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	CES-128
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1087-28
Standard Package	1
Win Source Part Number	1174349-CES-128-01-T-S
Ultra Librarian 3D Model	Ultra Librarian CES-128-01-T-S CAD Model

Alternative Products

Description

The CES-128-01-T-S is a 28-position female socket rectangular connector from Samtec Inc.

Series: CES
Pitch: 0.100" (2.54mm)
Contact Shape: Square
Contact Length: 0.128" (3.25mm)
Contact Material: Phosphor Bronze
Contact Finish: Tin
Insulation Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Temperature Range: -55°C to 105°C
Connector Style: Board-to-Board
Mounting Type: Through-Hole
