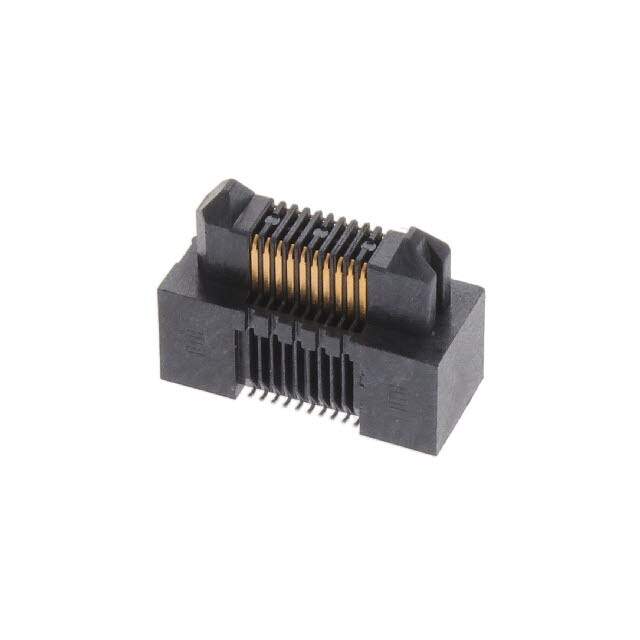

Same model may have multiple batches, images only for reference.

ERM5-010-05.0-L-DV-K-TR

Name: ERM5-010-05.0-L-DV-K-TR
Brand: Samtec Inc.
SKU: 992909
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ERM5-010-05.0-L-DV-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	ERM5-010-05.0-L-DV-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Edge Rate™ ERM5
Package	Tape & Reel
Connector Type	Header, Outer Shroud Contacts
Number of Positions	20
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	10mm, 12mm
Height Above Board	0.309" (7.85mm)
Base Product Number	ERM5-010
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	ERM5-010-05.0-L-DV-K-TR-ND,SAM13140CT,ERM5-010-05.0-L-DV-K-FR,SAM13140DKR,SAM13140TR
Standard Package	325
Win Source Part Number	992909-ERM5-010-05.0-L-DV-K-TR
Ultra Librarian 3D Model	Ultra Librarian ERM5-010-05.0-L-DV-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. 992909-ERM5-010-05.0-L-DV-K-TR is an Edge Rate™ ERM5 series rectangular connector with header, outer shroud contacts.

Positions: 20
Pitch: 0.020" (0.50mm)
Connector Type: header
Features: board guide and pick and place
Standard Package: 325
Mount: SMD (SMT)
