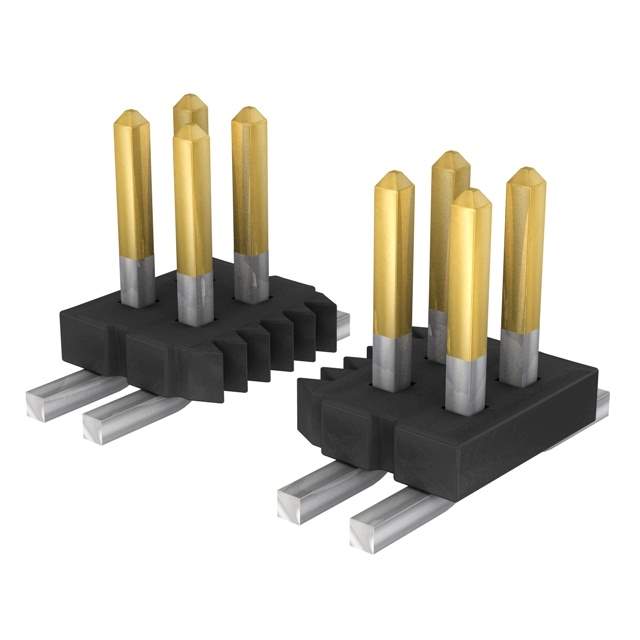

FTS-125-01-L-DV-P-TR Real Image
Same model may have multiple batches, images only for reference.

FTS-125-01-L-DV-P-TR

Part No FTS-125-01-L-DV-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 50POS 1.27MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Samtec Inc.
Packaging Reel
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.034" (0.86mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0μin (0.25μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Manufacturer Pack Quantity 675
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812156-FTS-125-01-L-DV-P-TR
Ultra Librarian 3D Model Ultra Librarian FTS-125-01-L-DV-P-TR CAD Model

Description

The Samtec Inc. 812156-FTS-125-01-L-DV-P-TR is a header connector designed for board to board or cable applications, manufactured by Samtec Inc.

  • Application: Board to board or cable
  • Pitch: 0.050" (1.27mm)
  • Mounting Style: SMD
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold (10.0μin (0.25μm) mating), Tin (post)
  • Fastening Type: Push-Pull
  • Shrouding: Unshrouded
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C ~ 125°C
  • Current Rating: 3.4A per contact
  • Package Type: Reel
  • Manufacturer Pack Quantity: 675
  • Pick and Place: Yes
