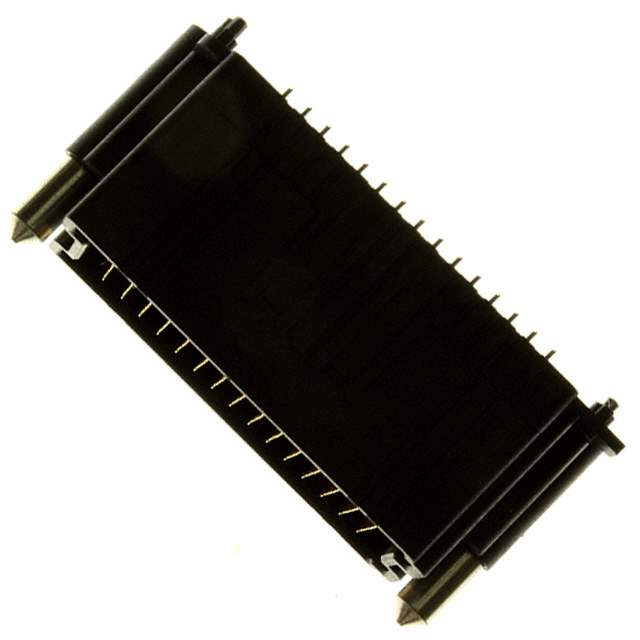

HDAM-15-17.0-S-13-1

Name: HDAM-15-17.0-S-13-1
Brand: Samtec Inc.
SKU: 1073394
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HDAM-15-17.0-S-13-1
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HD ARRAY PLUG 195P SMD GOLD / 195 Position Connector High Density Array, Male Surface Mount Gold
Datasheet	HDAM-15-17.0-S-13-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	HD Mezz™ HDAM
Package	Tray
Connector Type	High Density Array, Male
Number of Positions	195
Pitch	0.047" (1.20mm)
Number of Rows	13
Mounting	SMD (SMT)
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	25mm, 35mm
Height Above Board	0.880" (22.35mm)
Base Product Number	HDAM-15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM8646
Standard Package	18
Win Source Part Number	1073394-HDAM-15-17.0-S-13-1
Ultra Librarian 3D Model	Ultra Librarian HDAM-15-17.0-S-13-1 CAD Model

Alternative Products

Description

The HDAM-15-17.0-S-13-1 connector is a high-density array male connector used for board-to-board or mezzanine connections from Samtec Inc.

Number of Positions: 195
Pitch: 0.047" (1.20mm)
Board Guide: Yes
Above Board: 0.880" (22.35mm)
Contact Finish: Gold (30.0µin or 0.76µm)
Mounting Type: Surface Mount
Standard Package: 18
Operating Temperature Range: -55°C to 125°C
