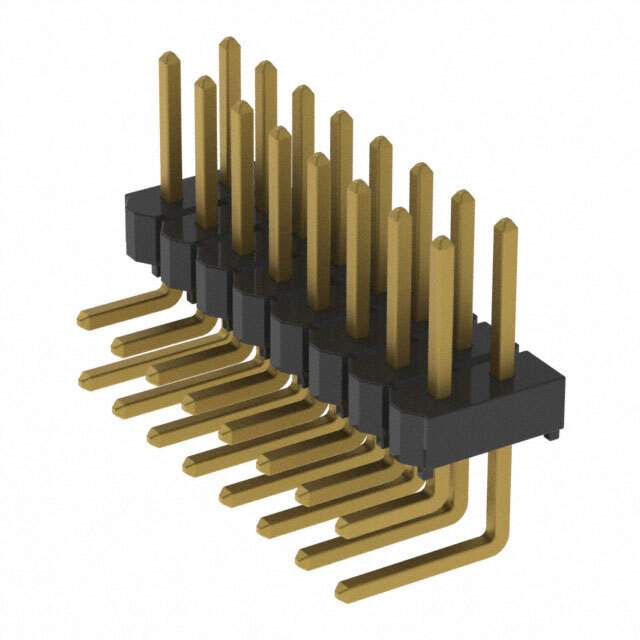

HTSW-108-08-G-D-RA Real Image
Same model may have multiple batches, images only for reference.

HTSW-108-08-G-D-RA

Part No HTSW-108-08-G-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER 16POS .1" T/H GLD RA / Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Side Entry Thru-Hole Bulk
Datasheet
HTSW-108-08-G-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series HTSW
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 16
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.090" (2.29mm)
Insulation Height 0.240" (6.10mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 3μin (0.08μm)
Win Source Part Number 798517-HTSW-108-08-G-D-RA
Popularity Medium
Supply and Demand Status Limited
Family Name HTSW
Introduction Date September 18, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HTSW-108-08-G-D-RA CAD Model

Description

The HTSW-108-08-G-D-RA is a rectangular header connector designed for board to board or cable style connections. The manufacturer is Samtec Inc.

  • Shrouding: Shrouded
  • Shrouding: Unshrouded
  • Mounting: Right angle
  • Positions: 16
  • Termination: Solder
  • Contact Material: Phosphor bronze
  • Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Natural
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 5.2A per contact
  • Compliance: REACH
  • ECCN: EAR99
