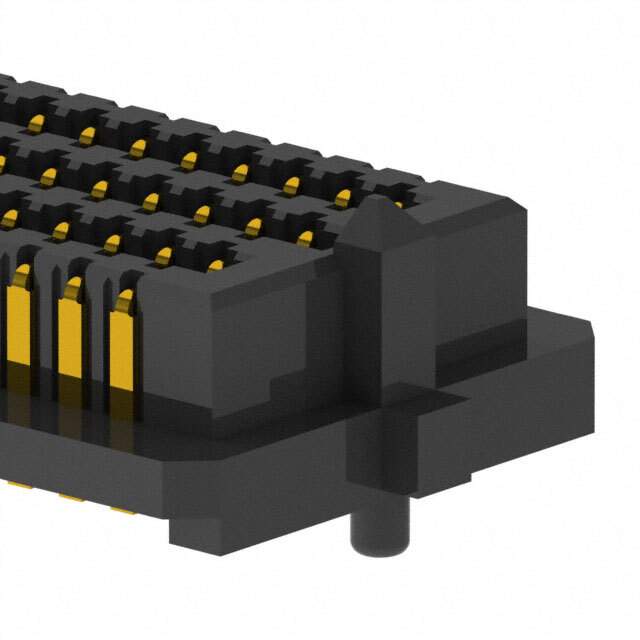

SEAM-20-06.5-L-08-2-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAM-20-06.5-L-08-2-A-K-TR

Part No SEAM-20-06.5-L-08-2-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAM-20-06.5-L-08-2-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAM
Package Tape & Reel (TR)
Connector Type High Density Array, Male
Number of Positions 160
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 11.5mm, 12.5mm, 13mm
Height Above Board 0.360" (9.14mm)
Base Product Number SEAM-20
Standard Package 150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293459-SEAM-20-06.5-L-08-2-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAM-20-06.5-L-08-2-A-K-TR CAD Model

Description

This SEARAY™ SEAM series high-density array connector is a male type with 160 positions and 8 rows.

  • Positions: 160
  • Rows: 8
  • Pitch: 0.050 inches (1.27mm)
  • Height Above Board: 0.360 inches (9.14mm)
  • Board Guide: Yes
  • Pick and Place: Yes
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Operating Temperature Range: -55°C to 125°C
  • Packaging: Tape and Reel (TR)
  • Package Quantity: 150
  • Current Rating: 3A
  • Applications: Board-to-Board or Mezzanine (Board-to-Board)
