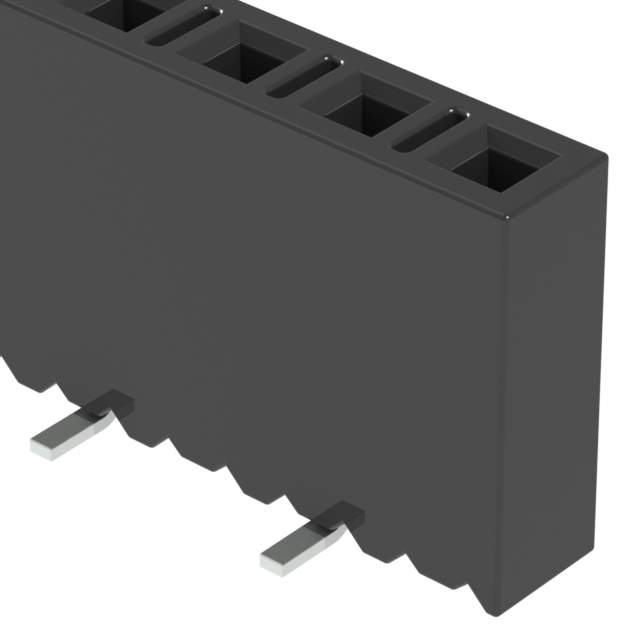

SSM-124-S-SV

Get a Quote

Part No	SSM-124-S-SV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSM-124-S-SV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Bulk
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	24
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-124
Other Names	SAM1152-24
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291941-SSM-124-S-SV
Ultra Librarian 3D Model	Ultra Librarian SSM-124-S-SV CAD Model

Alternative Products

Description

The SSM-124-S-SV connector from Samtec Inc. is a rectangular connector that is designed for board-to-board or cable applications.

Positions: 24
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: Single
Fastening Type: Push-Pull
Voltage Rating: 405VAC and 572VDC
Current Rating: 5.2A per contact
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold (30.0μin)
Contact Finish (Post): Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Height: 0.290 inches
Mounting: Surface-Mounted, Pass-Through
Temperature Range: -55°C to 125°C
