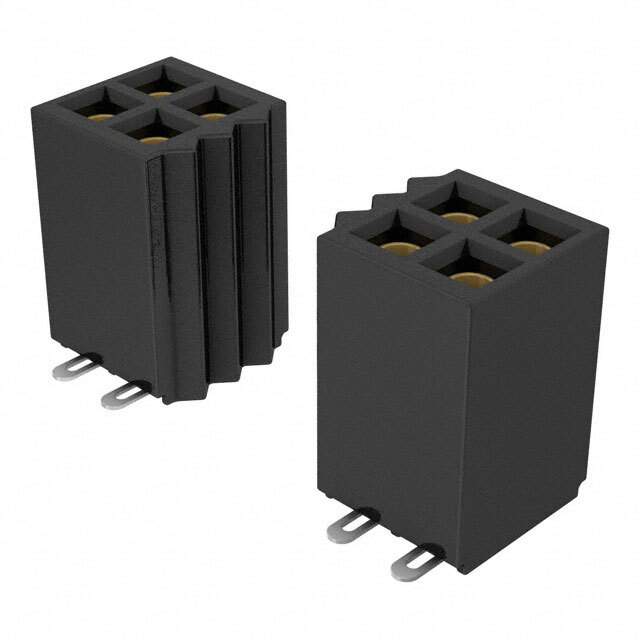

The Tiger Eye™ SFMC series of connectors from Samtec Inc. are rectangular connectors that feature a push-pull fastening system and are designed for board-to-board or cable applications.

• Connector Type: receptacle connector type.
• Contact Type: female socket contacts.
• Model: SFMC-136-02-L-D-K.
• Positions: a total of 72 positions, with all of them being loaded.
• Rows: two rows.
• Pitch: 0.050 inches (1.27mm).
• Contact Material: beryllium copper.
• Mating Contact Finish: gold with a thickness of 10.0µin (0.25µm).
• Contact Finish on Post: tin.
• Temperature Rating: -55°C to 125°C.
• Current Rating: 2.9A per contact.
• Package: tube package.
• Mounting: suitable for surface mount (SMD) (SMT) mounting.
