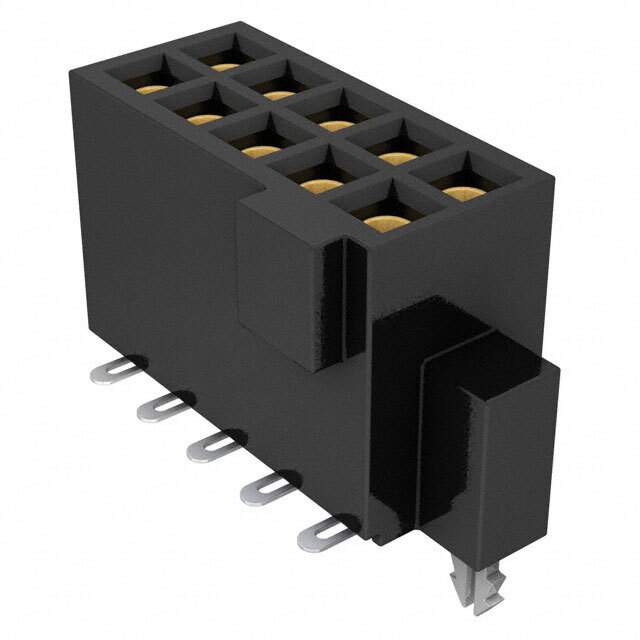

SFML-105-02-L-D-LC Real Image
Same model may have multiple batches, images only for reference.

SFML-105-02-L-D-LC

Part No SFML-105-02-L-D-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFML-105-02-L-D-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFML
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Lock
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Base Product Number SFML-105
Other Names SFML-105-02-L-D-LC,SAM11750
Standard Package 57
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285416-SFML-105-02-L-D-LC
Ultra Librarian 3D Model Ultra Librarian SFML-105-02-L-D-LC CAD Model

Description

The Tiger Eye™ SFML series from Samtec Inc. offers a female socket receptacle connector with a locking ramp fastening type.

  • Series: Tiger Eye™ SFML
  • Position: 10
  • Rows: 2
  • Positions Loaded: All
  • Pitch: 0.050 inches (1.27mm)
  • Fastening Type: Locking Ramp
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 250VAC
  • Current Rating: 3.2A per contact
  • Contact Finish for Mating: Gold with a thickness of 10.0μin (0.25μm)
  • Contact Finish for Post: Tin
  • Temperature Range: -55°C to 125°C
