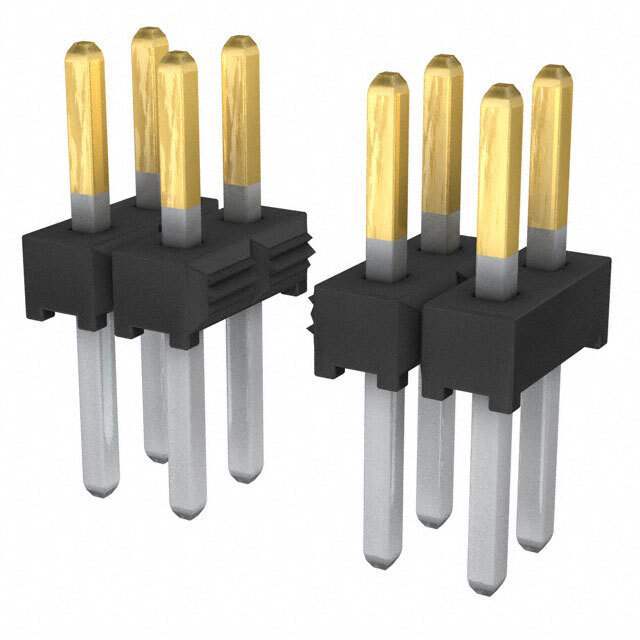

Same model may have multiple batches, images only for reference.

TMM-115-01-L-D

Name: TMM-115-01-L-D
Brand: Samtec Inc.
SKU: WS1328371
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMM-115-01-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 30POS 2MM
Datasheet	TMM-115-01-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Category	Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging	Bulk
Part Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Ultra Librarian 3D Model	Ultra Librarian TMM-115-01-L-D CAD Model

Alternative Products

Description

• Insulator Material: Black Liquid Crystal Polymer

• Terminal Material: Phosphor Bronze

• Plating: Sn or Au over 50 µ" (1.27 µm) Ni

• Current Rating (SMM/TMM): 3.2 A per row (2 pins powered)

• Operating Temp Range: -55 °C to +105 °C with Tin; -55 °C to +125 °C with Gold

• Voltage Rating: 281 VAC mated with SQW; 250 VAC mated with SQT
