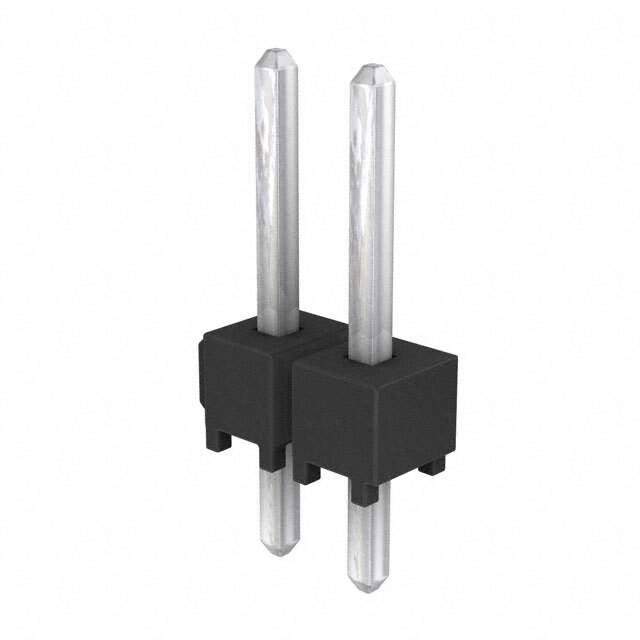

Same model may have multiple batches, images only for reference.

TSW-102-07-T-S

Name: TSW-102-07-T-S
Brand: Samtec Inc.
SKU: 692225
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSW-102-07-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	Performance Demonstration Kit for the ADS130E08 \| CONN HEADER VERT 2POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.100" (2.54mm)
Overall Contact Length	0.430" (10.92mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1274913-TSW-102-07-T-S
Manufacturer Homepage	www.ti.com
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Industrial
Ultra Librarian 3D Model	Ultra Librarian TSW-102-07-T-S CAD Model

Alternative Products

Description

The TSW-102-07-T-S is a male pin header connector manufactured by Samtec Inc.

Pitch-Mating: 0.100" (2.54mm)
Shrouded: Unshrouded
Applications: Board-to-Board or Cable
Temperature Range: -55°C to 105°C
Insulation Material: Polybutylene Terephthalate (PBT)
Supply and Demand Status: Limited
Applications: Industrial Applications
