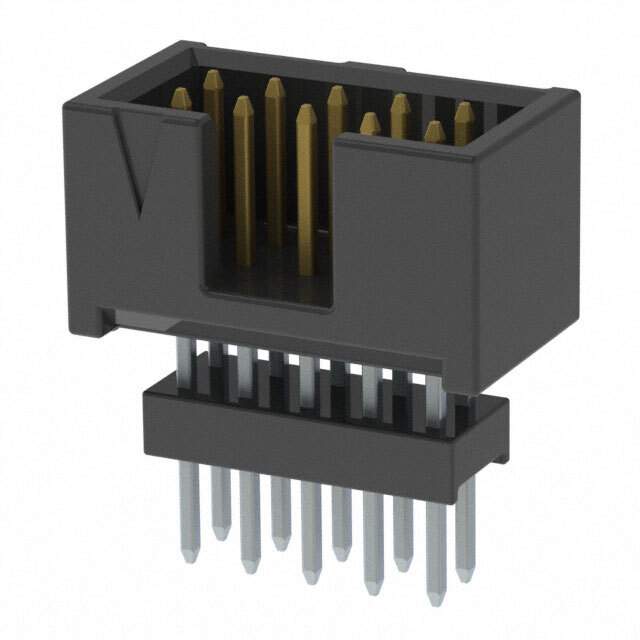

The Flex Stack ZSS series header connector is an elevated type connector with a shrouded 4-wall design.

• Series: Flex Stack ZSS
• Type: Header Connector - Elevated
• Design: Shrouded 4-Wall
• Contact Shape: Square
• Pitch: 0.100 inches or 2.54mm
• Positions Loaded: 10
• Rows: 2
• Termination: Soldering
• Contact Material: Phosphor Bronze
• Contact Finish (Mating): Gold
• Contact Finish (Post): Tin
• Contact Length (Mating): 0.250 inches or 6.35mm
• Contact Length (Post): 0.143 inches or 3.63mm
• Insulation Material: Polyester Glass Filled
• Insulation Color: Black
• Temperature Range: -55°C to 125°C
• Style: Board to Board or Cable
• Features: Keying Slot, Push-Pull Fastening Type
• Alternative Parts Cross-Reference: 5103309-1, 90130-1210, 5103310-1, 10-89-7102, 70246-1002, and 5104338-1
