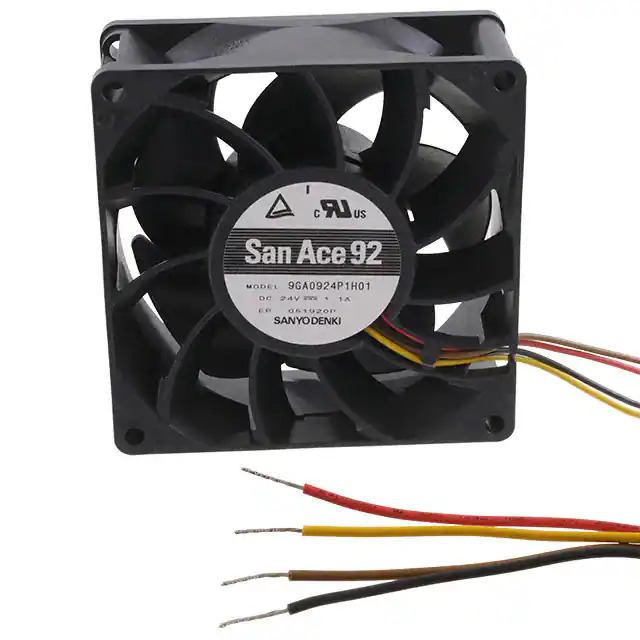

9GA0924P1H01 Sanyo Denki America Inc.
Same model may have multiple batches, images only for reference.

9GA0924P1H01

Part No 9GA0924P1H01
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 92X38MM 24VDC WIRE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 92
Package Box
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 92mm L x 92mm H
Width 38.00mm
Air Flow 141.0 CFM (3.95m³/min)
Static Pressure 2.010 in H2O (500.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 63.0dB(A)
Power (Watts) 26.4 W
RPM 9700 RPM
Termination 4 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.529 lb (240.00 g)
Current Rating (Amps) 1.10A
Voltage Range 20.4 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. Varies Based on Temperature
Base Product Number 9GA0924
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368448-9GA0924P1H01
Ultra Librarian 3D Model Ultra Librarian 9GA0924P1H01 CAD Model

Description

The San Ace 92 is a DC brushless fan designed for efficient thermal management in electronic systems.

  • Rated Voltage: 24VDC
  • Current Rating: 1.10A
  • Shape: Square
  • Dimensions: 92mm x 92mm
  • Maximum Air Flow: 141.0 CFM
  • Static Pressure: 2.010 in H2O
  • Noise Level: 63.0dB(A)
  • Features: PWM control, Speed sensor (tach)
  • Approvals: CSA, TUV, UL
  • Suitable for: Reliable and efficient cooling solution for electronic systems
