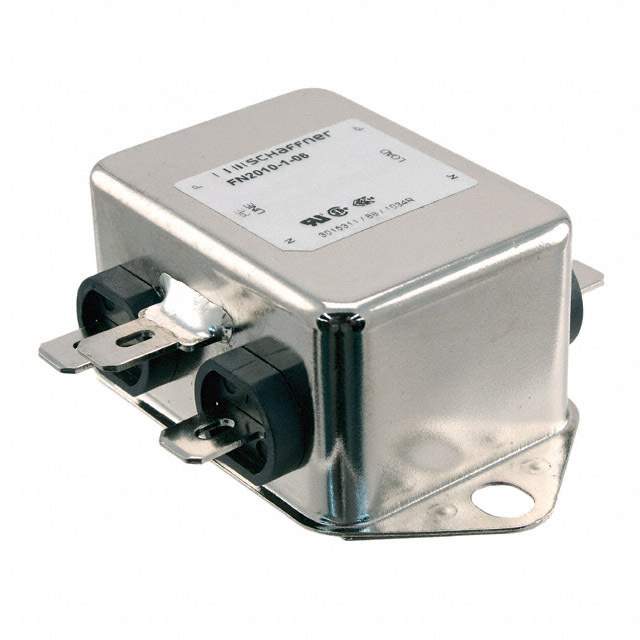

FN2010N1-10-06 Real Image
Same model may have multiple batches, images only for reference.

FN2010N1-10-06

Part No FN2010N1-10-06
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VDC/VAC 10A CHAS  /  Single Phase EMC/EMI Line Filter 10 A 250VAC DC ~ 400Hz Single Stage Quick Connect
Datasheet
FN2010N1-10-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Schaffner EMC Inc.
Series FN 2010
Package Box
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Current 10 A
Frequency - Operating DC ~ 400Hz
Applications General Purpose
Approval Agency CE, CSA, ENEC, UR
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 800µH
Base Product Number FN2010
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 817-2231,817050
Standard Package 60
Win Source Part Number 1230046-FN2010N1-10-06
Ultra Librarian 3D Model Ultra Librarian FN2010N1-10-06 CAD Model

Description

The Schaffner EMC Inc. FN 2010 power line filter module is a single-phase filter type with a current rating of 10A and a voltage rating of 250V AC and DC.

  • Filter Type: Single-Phase
  • Current Rating: 10A
  • Voltage Rating: 250V AC/DC
  • Inductance: 800µH
  • Frequency Range: DC to 400Hz
  • Termination Style: Quick Connect
  • Mounting: Chassis
  • Operating Temperature: -25°C to 100°C
  • Approvals: CE, CSA, ENEC, UR
  • Application: General Purpose
  • Standard Package: 60
