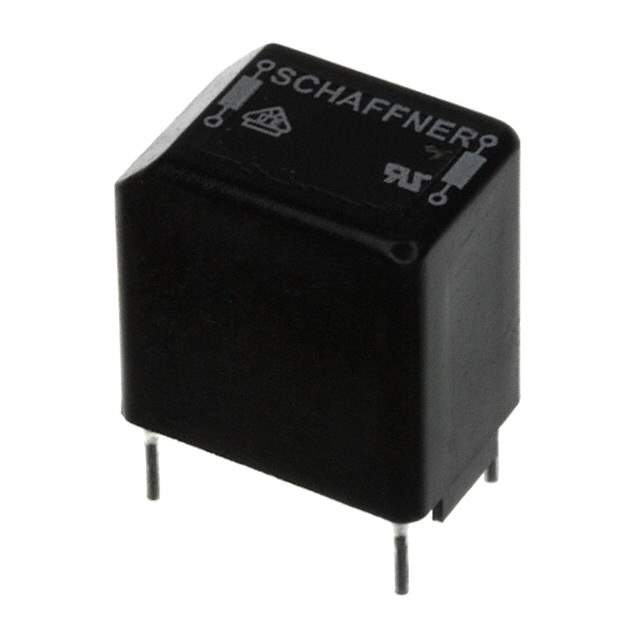

RN212-0.6-02-15M Real Image
Same model may have multiple batches, images only for reference.

RN212-0.6-02-15M

Part No RN212-0.6-02-15M
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 15MH 600MA 2LN TH  /  15 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 490mOhm (Typ)
Datasheet
RN212-0.6-02-15M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 15 mH @ 10 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 490mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) 0.799" (20.30mm)
Package / Case Vertical, 4 PC Pin
Base Product Number RN212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 816543,817-2168
Standard Package 500
Win Source Part Number 1135123-RN212-0.6-02-15M
Ultra Librarian 3D Model Ultra Librarian RN212-0.6-02-15M CAD Model

Description

This common mode choke, part number 1135123-RN212-0.6-02-15M, is a member of the RN series and is designed for use in power line filter applications.

  • Voltage Rating: 300V
  • Current Rating: 600mA
  • Package: Tube
  • Standard Package: 500
  • Height: 0.799 inches (20.30mm)
  • Package/Case: Vertical, 4 PC Pin
  • Temperature Range: -40°C to 100°C
  • Manufacturer: Schaffner EMC Inc.
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS: 8548.00.0000
  • Approvals: ENEC, UR, VDE
