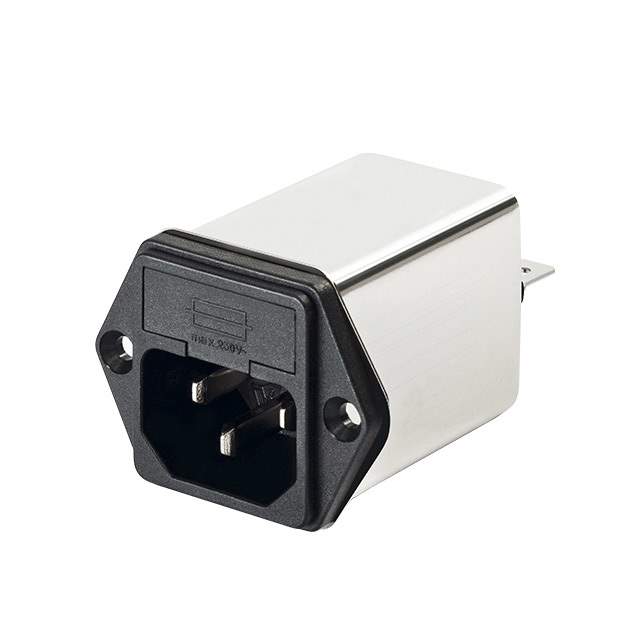

Same model may have multiple batches, images only for reference.

FN261-6-06

Name: FN261-6-06
Brand: Schaffner EMC Inc.
SKU: 1334384
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FN261-6-06
Manufacturer	Schaffner EMC Inc.
Catalog	AC Power Connectors
Description	PWR ENT MOD RCPT IEC320-C14 PNL / Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Datasheet	FN261-6-06 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>AC Power Connectors>Power Entry Modules (PEM)
Manufacturer	Schaffner EMC Inc.
Packaging	Tray
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Number of Positions	3
Filter Type	Filtered (EMI, RFI) - Commercial
Current Rating - Filter	4A
Accomodates a Fuse	Yes (Fuse Not Included)
Mounting	Panel Mount, Flange
Termination	Quick Connect - 0.250" (6.3mm)
Fuse Holder, Drawer	Fuse Holder
Panel Cutout Dimensions	Rectangular - 29.00mm x 33.00mm
Material Flammability Rating	UL94 V-2
Ingress Protection	IP40
Approval Agency	CQC, CSA, ENEC, UL
Base Product Number	FN261
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.30.8000
Other Part Number	290-559,FN 261 - 6 -06,800503,817-1090,FN261606
Standard Package	60
Win Source Part Number	1334384-FN261-6-06
Ultra Librarian 3D Model	Ultra Librarian FN261-6-06 CAD Model

Alternative Products

Description

The Schaffner EMC Inc. FN261-6-06 power entry module is a high-quality module that is perfect for a wide range of applications.

Positions: 3
Termination: quick connect
Connector Style: IEC 320-C14
Ingress Protection: IP40
Material Flammability Rating: UL94 V-2
Module Type: filtered (EMI, RFI) commercial
Fuse Holder: drawer type
Panel Cutout Dimensions: rectangular - 29.00mm x 33.00mm
Panel Thickness: not specified
MSL Level: not applicable
Current Rating - Filter: 4A
HTSUS: 8536.30.8000
Manufacturer: Schaffner EMC Inc.
