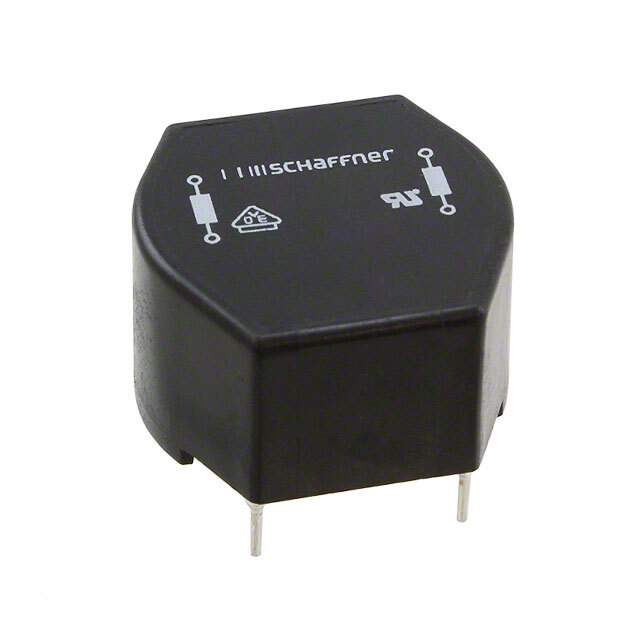

RN122-4-02-3M3 Real Image
Same model may have multiple batches, images only for reference.

RN122-4-02-3M3

Part No RN122-4-02-3M3
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 3.3MH 4A 2LN TH / 3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 4A DCR 46mOhm (Typ)
Datasheet
RN122-4-02-3M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Schaffner EMC Inc.
Packaging Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.3 mH @ 10 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 46mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Through Hole
Size / Dimension 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) 0.531" (13.50mm)
Case / Package Horizontal, 4 PC Pin
Base Product Number RN122
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 817-2133,816518
Standard Package 20
Win Source Part Number 1328228-RN122-4-02-3M3
Ultra Librarian 3D Model Ultra Librarian RN122-4-02-3M3 CAD Model

Description

The Schaffner EMC Inc. RN122-4-02-3M3 common mode choke is a high-quality electronic component that is designed to provide reliable and efficient filtering for power line applications.

  • Voltage Rating: 300V AC
  • Maximum Current Rating: 4A
  • Size/Dimension: 0.886" L x 0.846" W (22.50mm x 21.50mm)
  • Package: Horizontal, 4 PC pin
  • Mounting: Through-hole
