Same model may have multiple batches, images only for reference.

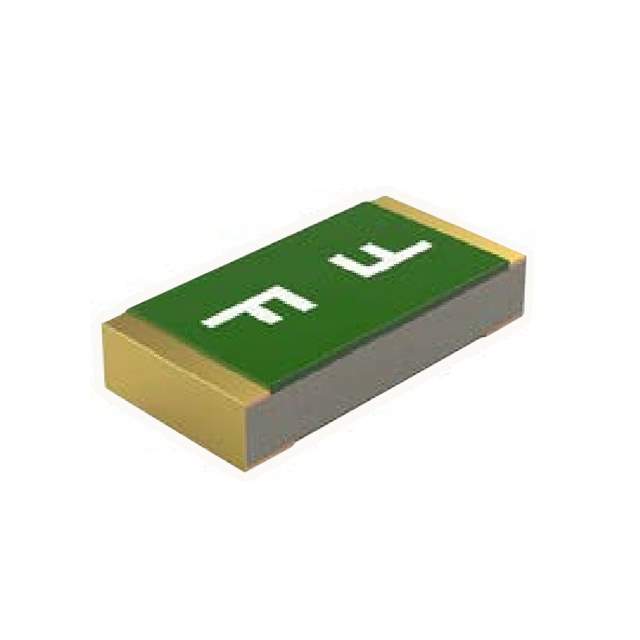

3413.0112.11 Real Image
Same model may have multiple batches, images only for reference.

3413.0112.11

Part No 3413.0112.11
Manufacturer Schurter Inc.
Catalog Fuses
Description USF 1206 FUSE 375MA FF / 375 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series USF 1206
Package Strip
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 375 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.01
Approval Agency cURus
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
DC Cold Resistance 0.315 Ohms
Base Product Number 3413.0112
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-4930
Standard Package 100
Win Source Part Number 1200764-3413.0112.11
Ultra Librarian 3D Model Ultra Librarian 3413.0112.11 CAD Model

Description

The USF 1206 3413.0112.11 is a board mount (cartridge style excluded) fuse from SCHURTER Inc. designed for use in electronic devices that require a high level of performance and reliability.

  • Voltage Rating (AC): 125 V AC
  • Voltage Rating (DC): 125 V DC
  • Current Rating: 375 mA
  • Response Time: Fast blow
  • Breaking Capacity: 50A @ rated voltage
  • Manufacturer Part Number: 1200764-3413.0112.11
  • Category: Circuit protection
  • Popularity: Medium
  • Supply and Demand Status: Limited
