Same model may have multiple batches, images only for reference.

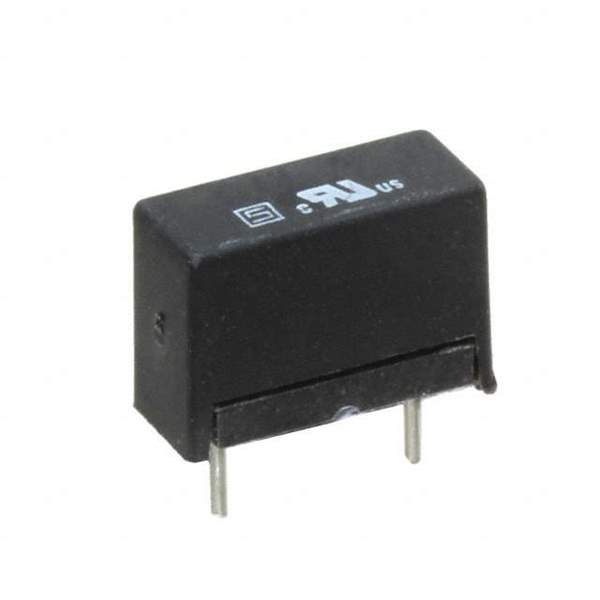

7100.1022.13 Real Image
Same model may have multiple batches, images only for reference.

7100.1022.13

Part No 7100.1022.13
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 5A 250VAC RAD / Fuse Subminiature Fast Acting 5A 250V Radial 11.5 X 5mm Thermoplastic Bag cULus
Datasheet
7100.1022.13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Series FRT 250T
Packaging Bulk
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 5A
Voltage Rating - AC 250V
Response Time Slow
Package Radial, Box
Mounting Style Through Hole
Breaking Capacity @ Rated Voltage 50A
Melting I2t 32
Approvals cURus
Operating Temperature Range -40°C ~ 85°C
Dimension 0.453" L x 0.197" W x 0.315" H (11.50mm x 5.00mm x 8.00mm)
Win Source Part Number 771052-7100.1022.13
Popularity Medium
Supply and Demand Status Limited
Family Name FRT 250F
Introduction Date November 09, 2000
ECCN EAR99
Country of Origin India
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian 7100.1022.13 CAD Model

Description

The Schurter Inc. FRT 250T is a board mount fuse that is perfect for use in circuit protection.

  • Package: Radial, Box
  • Mounting: Through Hole
  • Current Rating: 5A
  • Voltage Rating AC: 250V
  • Response Time: Slow
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 32
  • Operating Temperature: -40°C ~ 85°C
  • Dimensions: 0.453" L x 0.197" W x 0.315" H (11.50mm x 5.00mm x 8.00mm)
