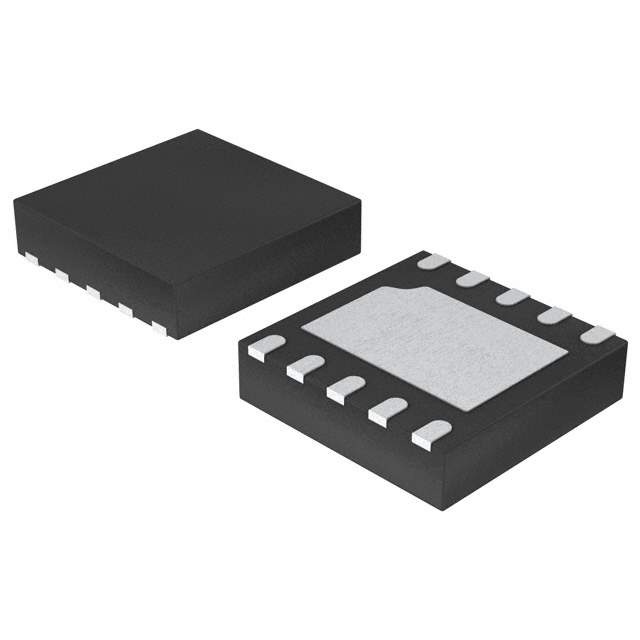

The SC600BIMLTR is a high-performance, low-dropout (LDO) linear regulator designed to provide a stable and regulated output voltage from a higher input voltage. It features excellent transient response and low noise, making it suitable for sensitive applications. This regulator is part of Semtech's family of power management solutions, known for their efficiency and reliability.

Applications:

• Post DC-DC converter regulation
• Portable electronic devices
• Battery-powered systems
• Noise-sensitive circuits
• Microcontroller power supplies

Features:

• Low dropout voltage
• High accuracy output voltage
• Low quiescent current
• Excellent transient response
• Overcurrent and thermal protection
• Stable with ceramic output capacitors
• Small outline package

Benefits:

• Provides a stable and regulated voltage even with a small difference between input and output voltages.
• Minimizes power loss and extends battery life due to low quiescent current.
• Ensures reliable operation by protecting against overcurrent and thermal overload.
• Reduces noise and ripple in sensitive circuits.
• Simplifies design with its small package and stability with ceramic capacitors.

Technical Specifications:

The SC600BIMLTR's dropout voltage is typically very low, often less than 200mV at full load. The output voltage is typically adjustable or fixed at a specific value (e.g., 3.3V, 5V). The input voltage range typically extends from slightly above the output voltage up to a maximum voltage rating. The maximum output current is a crucial parameter and varies between different versions of the SC600B series, so consult the datasheet. The quiescent current is usually in the microampere range.
