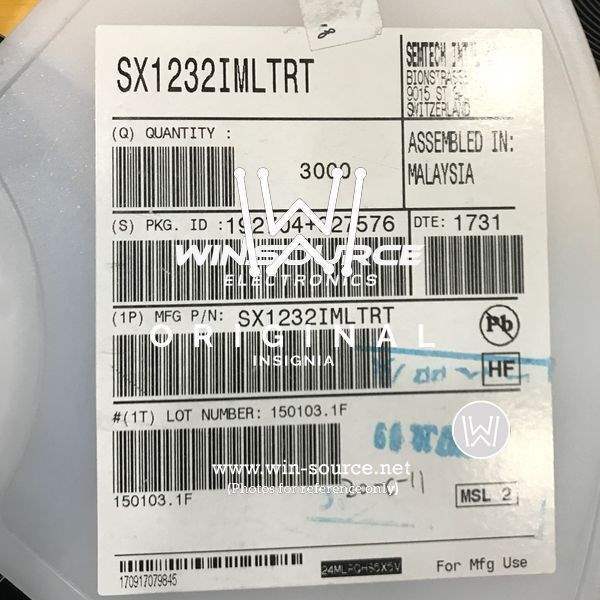

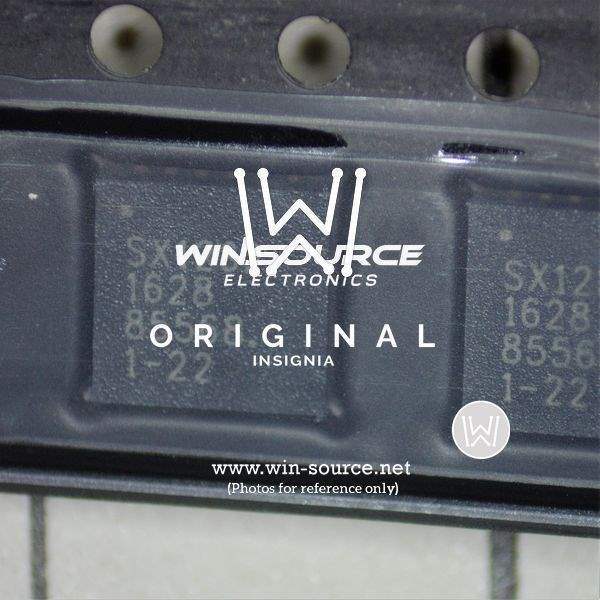

SX1232IMLTRT Real Image SX1232IMLTRT real image SX1232IMLTRT label picture
Same model may have multiple batches, images only for reference.
SX1232IMLTRT Real Image SX1232IMLTRT real image SX1232IMLTRT label picture
SX1232IMLTRT Real Image SX1232IMLTRT real image SX1232IMLTRT label picture
Same model may have multiple batches, images only for reference.

SX1232IMLTRT

Part No SX1232IMLTRT
Manufacturer Semtech Corporation
Catalog RF Transceiver ICs
Description IC RF TXRX ISM
Datasheet
SX1232IMLTRT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Categories RF/IF and RFID
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type TxRx Only
RF Family/Standard General ISM
Modulation FSK, GFSK, GMSK, MSK, OOK
Frequency 862Mhz to 1.02GHz
Data Rate (Max) 300kbps
Power - Output 20dBm
Sensitivity -123dBm
Serial Interfaces SPI
GPIO 6
Supply Voltage - Operating 1.8 V to 3.7 V
Current - Receiving 9.3mA
Current - Transmitting 18mA to 125mA
Temperature Range - Operating -40°C to 85°C
Dimension 24-VQFN Exposed Pad
Win Source Part Number 1104167-SX1232IMLTRT
Family Name SX1232
Introduction Date May 01, 2012
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian SX1232IMLTRT CAD Model

Description

The SX1232IMLTRT electronic component is manufactured by Semtech Corporation.

  • Manufacturer: Semtech Corporation
  • Supply and Demand Status: Balance
  • Type: TxRx only
  • Frequency Range: 862Mhz to 1.02GHz
  • Status: Active
  • Temperature Range: From -40°C to 85°C
  • Feature: Halogen-free
  • Estimated EOL Date: 2023
