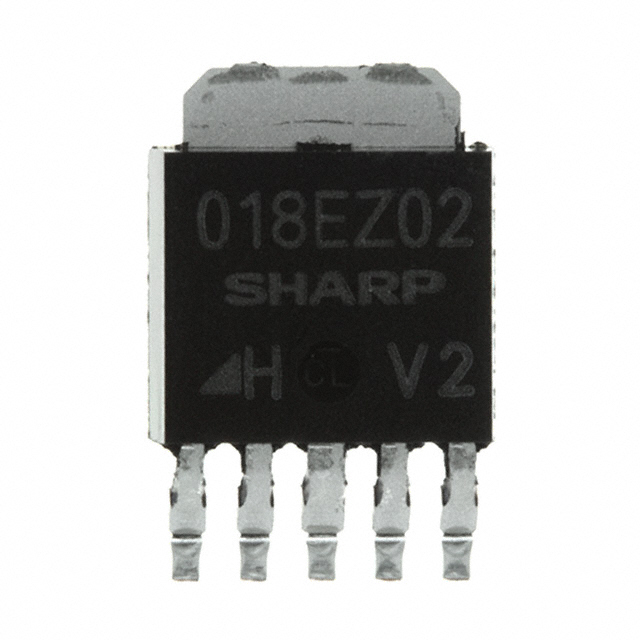

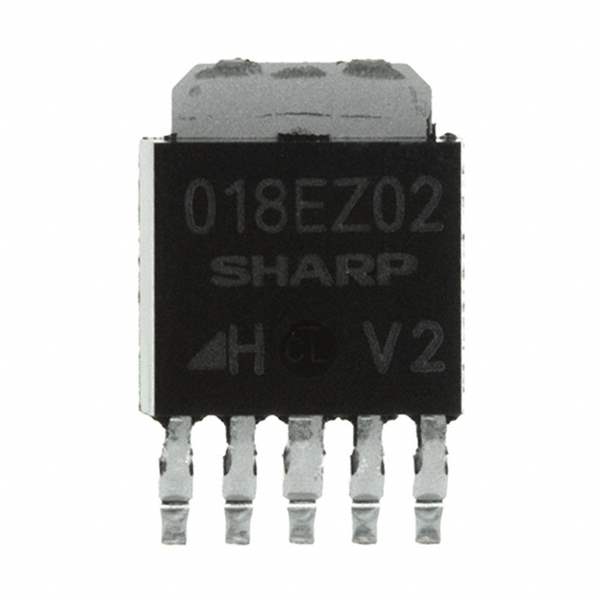

PQ018EZ02ZPH Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ018EZ02ZPH

Part No PQ018EZ02ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.8V 2A SC63
Datasheet
PQ018EZ02ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.8V
Output Current 2A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 1.8V
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 026836-PQ018EZ02ZPH
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PQ018EZ02ZPH CAD Model

Description

The Sharp Microelectronics 026836-PQ018EZ02ZPH is a Positive Fixed Regulator with a single regulator topology.

  • Output Current: 2A
  • Output Voltage: 1.8V
  • Enabled: Yes
  • Maximum Input Voltage: 10V
  • Operating Temperature: -40°C to 85°C
  • Case/Package: SC-63
  • Nominal Output Voltage (Min/Fixed): 1.8V
  • Operating Supply Current: 2mA
  • PSRR: 60dB (120Hz)
  • Protection Features: Over current and over temperature
  • Popularity: Medium
  • Supply and Demand: Sufficient
