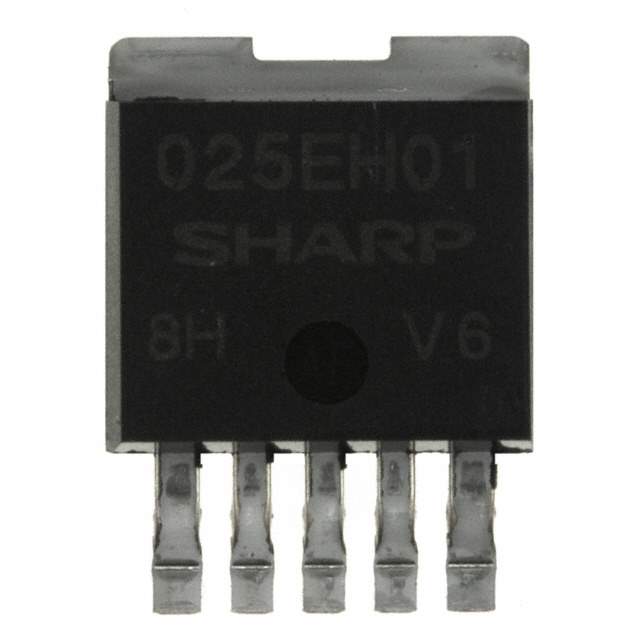

PQ025EH01ZPH Real Image1 PQ025EH01ZPH Real Image2
Same model may have multiple batches, images only for reference.
PQ025EH01ZPH Real Image1 PQ025EH01ZPH Real Image2
PQ025EH01ZPH Real Image1 PQ025EH01ZPH Real Image2
Same model may have multiple batches, images only for reference.

PQ025EH01ZPH

Part No PQ025EH01ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 1A TO263
Datasheet
PQ025EH01ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 2.5V
Output Current 1A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package TO-263
Win Source Part Number 1089862-PQ025EH01ZPH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ025EH01ZPH CAD Model

Description

This integrated circuit component is a fixed output type with an enable control feature.

  • Input Voltage (Max): 10V
  • Output Voltage (Nominal): 2.5V
  • Output Current: 1A
  • Package: TO-263
  • PSRR: 60dB (120Hz)
  • Protection Features: Over Current and Over Temperature
