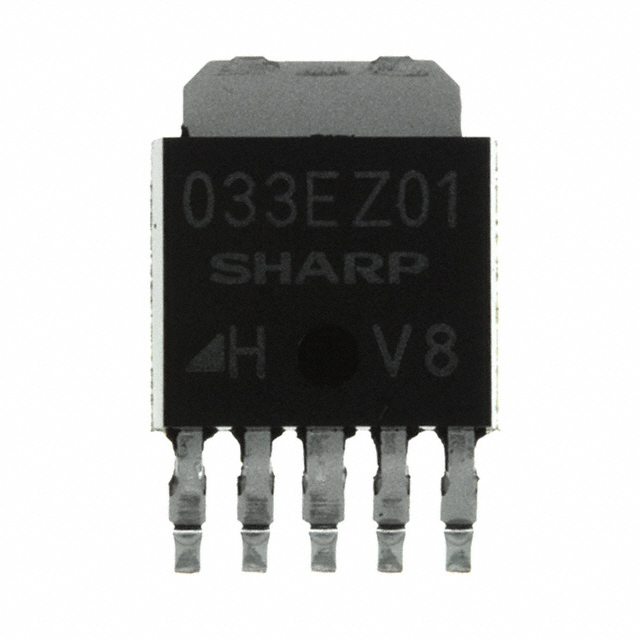

PQ033EZ01ZPH Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ033EZ01ZPH

Part No PQ033EZ01ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 1A SC63
Datasheet
PQ033EZ01ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.2V @ 500mA
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 026838-PQ033EZ01ZPH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PQ033EZ01ZPH CAD Model

Description

The Sharp Microelectronics PQ033EZ01ZPH is a positive fixed regulator with a dropout voltage of 0.2V @ 500mA.

  • Dropout Voltage: 0.2V @ 500mA
  • Number of Regulators: 1
  • Output Type: Fixed 3.3V
  • Output Current: 1A
  • Enable Control: Yes
  • Mounting: SMD (SMT)
  • Package: SC-63
  • Maximum Input Voltage: 10V
  • Operating Supply Current: 2mA
  • PSRR: 60dB (120Hz)
  • Protection: Over Current and Over Temperature
  • Temperature Range: -40°C to 85°C
  • Popularity: High
  • Supply and Demand Status: Sufficient
