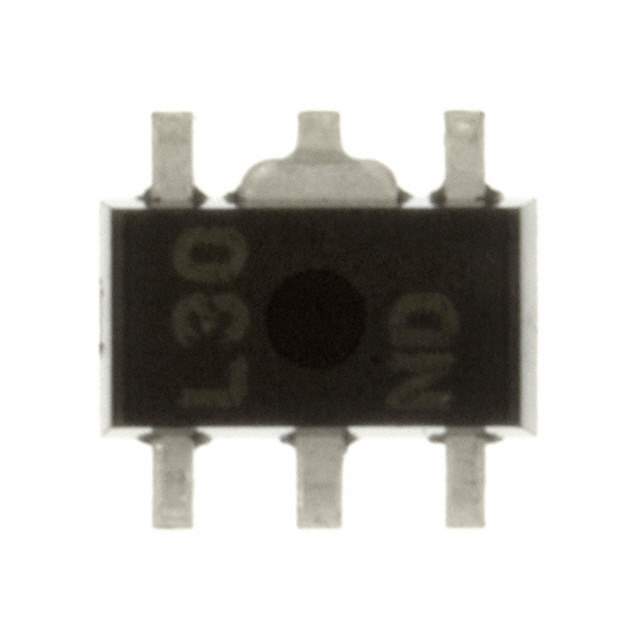

PQ1L333M2SP Real Image
Same model may have multiple batches, images only for reference.

PQ1L333M2SP

Part No PQ1L333M2SP
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 0.3A SOT89
Datasheet
PQ1L333M2SP Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.7V @ 300mA
Output Current 300mA
Operating Supply Current 500μA
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -30°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.3V @ 300mA
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 101666-PQ1L333M2SP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PQ1L333M2SP CAD Model

Description

The electronic component with Id 287287 is a positive fixed regulator manufactured by Sharp Microelectronics.

  • Supply and Demand Status: limited
  • Output Voltage: 3.3V
  • Maximum Input Voltage: 16V
  • Protection: over current and over temperature protection
  • Suitability: suitable for integrated circuit applications.
