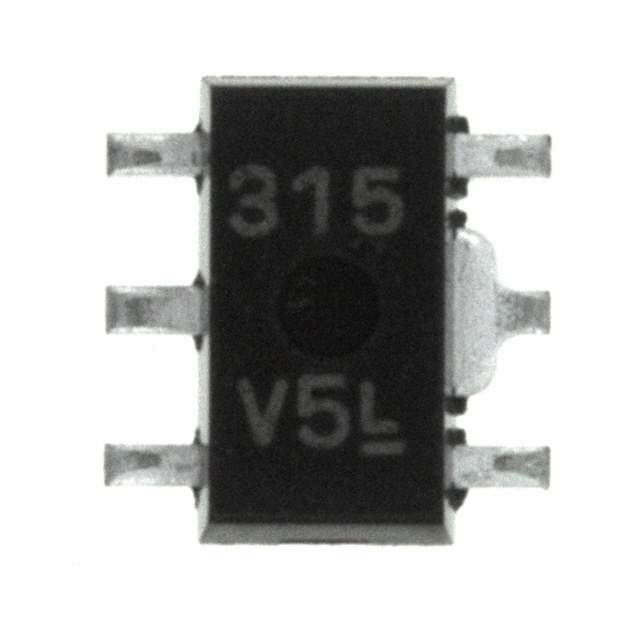

PQ2L3252MSPQ Real Image1 PQ2L3252MSPQ Real Image2
Same model may have multiple batches, images only for reference.
PQ2L3252MSPQ Real Image1 PQ2L3252MSPQ Real Image2
PQ2L3252MSPQ Real Image1 PQ2L3252MSPQ Real Image2
Same model may have multiple batches, images only for reference.

PQ2L3252MSPQ

Part No PQ2L3252MSPQ
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V/2.5V 0.25A SOT89
Datasheet
PQ2L3252MSPQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 2
Maximum Input Voltage 9V
Nominal Output Voltage (Min/Fixed) 2.5V, 3.3V
Dropout Voltage-Max 1V @ 200mA, 1V @ 200mA
Output Current 250mA, 250mA
Operating Supply Current 400μA
PSRR 60dB (400kHz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -30°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 3.3V, 2.5V
Voltage - Dropout (Typical) 0.16V @ 100mA, 0.24V @ 200mA
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 062026-PQ2L3252MSPQ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ2L3252MSPQ CAD Model

Description

The Sharp Microelectronics 062026-PQ2L3252MSPQ is a positive fixed regulator with a voltage dropout of 0.16V @ 100mA, 0.24V @ 200mA.

  • Regulators: It has two regulators.
  • Output Current: With an output current of 250mA, 250mA.
  • Output Voltage: An output voltage of 3.3V, 2.5V.
  • Maximum Input Voltage: Is 9V.
  • Nominal Output Voltage (Min/Fixed): Is 2.5V, 3.3V.
  • Dropout Voltage-Max: Is 1V @ 200mA, 1V @ 200mA.
  • PSRR: 60dB (400kHz).
  • Mounting: Via SMD (SMT).
  • Packaging: Reel - TR.
  • Temperature Range: -30°C to 80°C.
  • Category: Integrated Circuits.
  • Status: Obsolete (EOL).
  • Control Protection Features: Over Current, Over Temperature.
