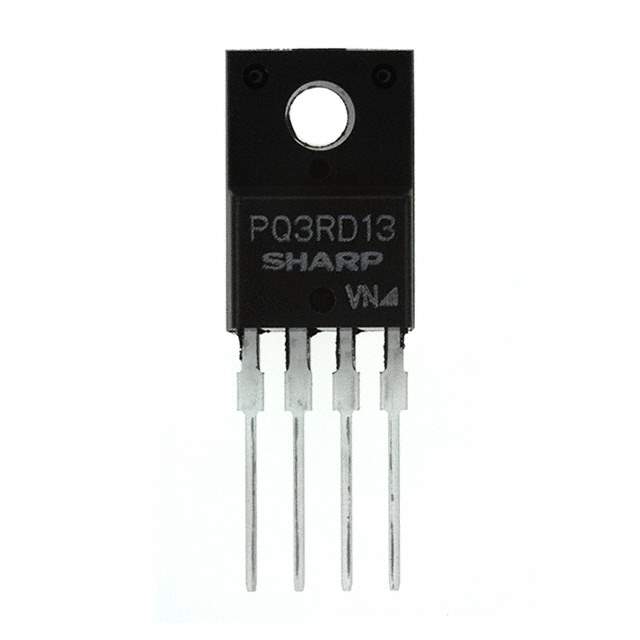

PQ3RD13J000H Real Image
Same model may have multiple batches, images only for reference.

PQ3RD13J000H

Part No PQ3RD13J000H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 1A TO220-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 10mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 062028-PQ3RD13J000H
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PQ3RD13J000H CAD Model

Description

The PQ3RD13J000H is an obsolete (EOL) electronic component manufactured by Sharp Microelectronics.

  • Supply and Demand Status: The supply and demand status of this product is balanced.
  • Function: Designed to provide a stable output voltage even when the input voltage fluctuates.
  • Application: Suitable for use in a variety of applications including battery-powered devices, converters, and more.
  • Attributes: High efficiency and low power consumption.
  • Solution: A reliable and cost-effective solution for your electronic design needs.
