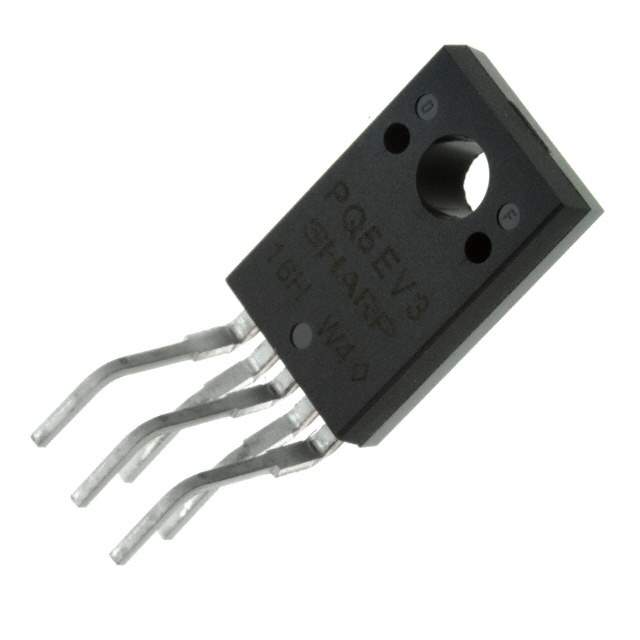

PQ5EV3 Real Image
Same model may have multiple batches, images only for reference.

PQ5EV3

Part No PQ5EV3
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 3.5A TO220-5
Datasheet
PQ5EV3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 7V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 5V
Dropout Voltage-Max 0.5V @ 3.5A
Output Current 3.5A
PSRR 70dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 5 V
Mounting Through Hole
Case / Package TO-220-5
Win Source Part Number 062030-PQ5EV3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PQ5EV3 CAD Model

Description

The Sharp Microelectronics 062030-PQ5EV3 is a positive adjustable regulator with a maximum input voltage of 7V and maximum output voltage of 5V.

  • Manufacturer: Sharp Microelectronics
  • Maximum Input Voltage: 7V
  • Maximum Output Voltage: 5V
  • Dropout Voltage: 0.5V @ 3.5A
  • PSRR: 70dB (120Hz)
  • Package: TO-220-5
  • Output Current: 3.5A
  • Enable Control: Yes
  • Protection Features: Over current and over temperature
  • Category: Integrated Circuits
  • Status: Obsolete (EOL)
  • Temperature Range: -20°C to 80°C
  • Mounting: Through hole
