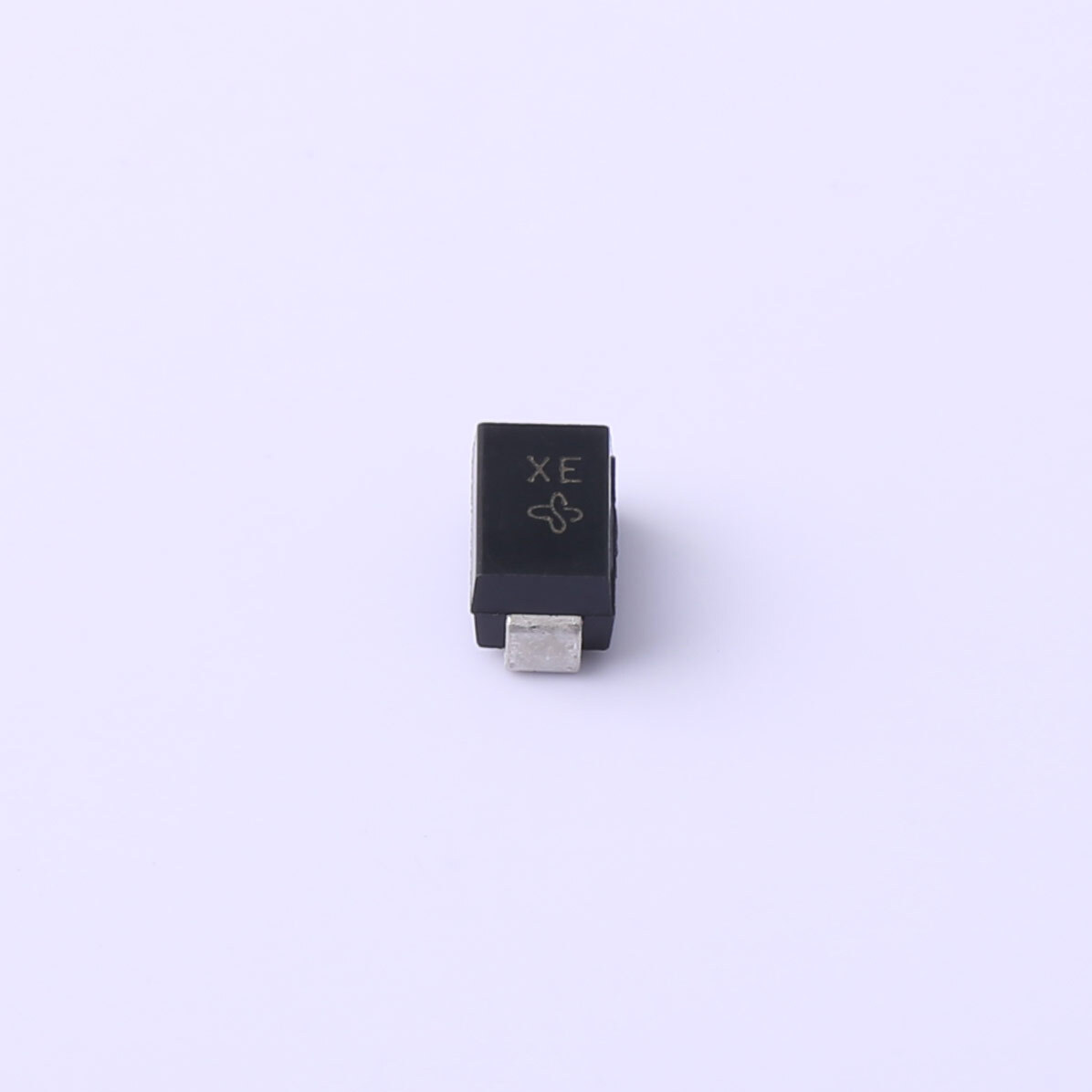

Same model may have multiple batches, images only for reference.

SMAJ12CA

Name: SMAJ12CA
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329877
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMAJ12CA
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	TVS - Diodes
Description	20.1A 19.9V 13.3V 12V DO-214AC
Datasheet	SMAJ12CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329877-SMAJ12CA
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	12V
Voltage - Breakdown (Min)	13.3V
Voltage - Clamping (Max) @ Ipp	19.9V
Current - Peak Pulse (10/1000µs)	20.1A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Series	*
Package	Tape & Reel (TR)
Supplier Device Package	SMAJ (DO-214AC)
Bidirectional Channels	2
Power Line Protection	Yes
Operating Temperature	-55°C ~ 150°C
Supplier Device Package	DO-214AC (SMAJ)
Package	Strip
Package / Case	DO-214AC (SMA)
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	14V (Typ)
Operating Temperature	-65°C ~ 150°C (TJ)
Supplier Device Package	DO-214AC
Ultra Librarian 3D Model	Ultra Librarian SMAJ12CA CAD Model
