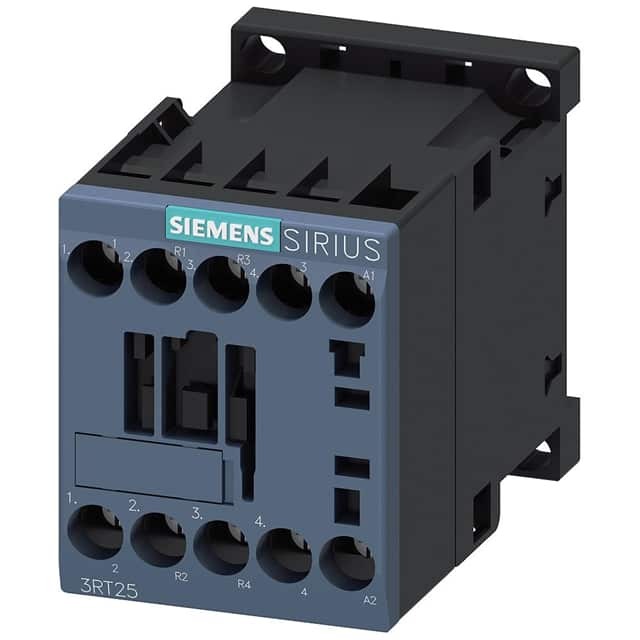

3RT25161AB00 Siemens
Same model may have multiple batches, images only for reference.

3RT25161AB00

Part No 3RT25161AB00
Manufacturer Siemens
Catalog Contactors (Electromechanical)
Description CONTACTOR S00 9A 24VAC 2NO/2NC S
Datasheet
3RT25161AB00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Contactors (Electromechanical)
Mfr Siemens
Series SIRIUS
Package Box
Product Status Active
Mounting Type Chassis Mount, DIN Rail
Coil Voltage 24VAC
Contact Form 4PST-2NO/2NC (2 Form A, 2 Form B)
Contact Rating (Current) 9 A
Switching Voltage 690VAC - Max
Features Auxiliary Contacts
Termination Style Screw Terminal
Temperature Range - Operating -25°C ~ 60°C
Must Operate Voltage 19.2 VAC
Operate Time 35 ms
Release Time 13 ms
Coil Power 27VA
Base Product Number 3RT2516
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0045
Win Source Part Number 1089146-3RT25161AB00
Ultra Librarian 3D Model Ultra Librarian 3RT25161AB00 CAD Model

Description

The 3RT25161AB00 is a relay contactor from Siemens.

  • Series: SIRIUS
  • Termination Style: Screw Terminal
  • Auxiliary Contacts: Yes
  • Package: Box
  • Contact Form: 4PST-2NO/2NC (2 Form A, 2 Form B)
  • Contact Material: Not Specified
  • Standard Package: 1 Piece
  • Coil Voltage: 24VAC
  • Contact Rating: 9A
  • Switching Voltage: 690VAC maximum
  • Mounting Type: Chassis Mount or DIN Rail
  • Operating Temperature: -25°C to 60°C
  • REACH: Unaffected
  • Product Status: Active
