Same model may have multiple batches, images only for reference.

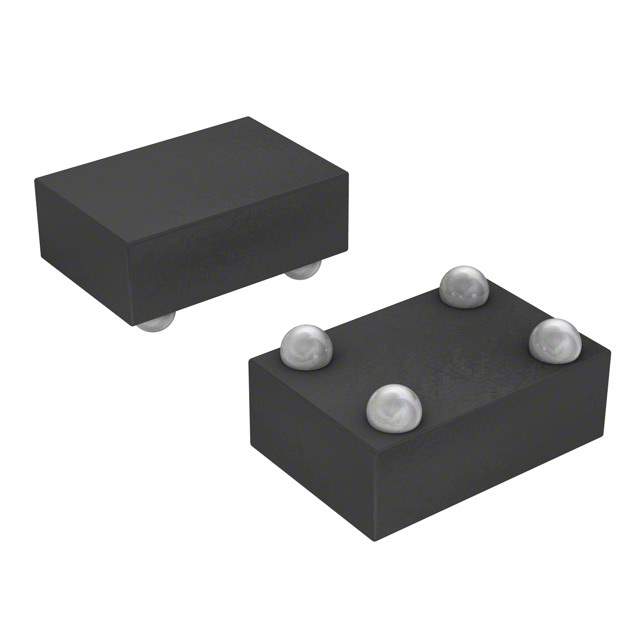

S-L2985B15-H4T1 Real Image
Same model may have multiple batches, images only for reference.

S-L2985B15-H4T1

Part No S-L2985B15-H4T1
Manufacturer SII Semiconductor Corporation
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.5V 0.15A WLP4B
Datasheet
S-L2985B15-H4T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer SII Semiconductor Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 6.5V
Nominal Output Voltage (Min/Fixed) 1.5V
Dropout Voltage-Max 0.55V @ 100mA
Output Current 150mA
Operating Supply Current 90μA
PSRR 80dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 1.5V
Voltage - Dropout (Typical) 0.32V @ 100mA
Mounting SMD (SMT)
Case / Package WLP-4B
Win Source Part Number 064716-S-L2985B15-H4T1
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Portable Devices, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Medical, Security, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian S-L2985B15-H4T1 CAD Model

Description

It is a positive fixed voltage regulator with a dropout voltage of 0.32V @ 100mA.

  • Maximum Input Voltage: 6.5V
  • Nominal Output Voltage: 1.5V
  • Applications: portable devices, industrial equipment, computers and computer peripherals, sensing and instrumentation, medical devices, and security systems.
