The EFM8BB31F32I-B-4QFN24R is a high-performance, low-power 8-bit microcontroller from Silicon Labs' EFM8 Busy Bee family. It's based on a pipelined 8051 core and features a rich set of integrated peripherals, making it suitable for a wide range of embedded applications.

Applications

• Motor control: BLDC, PMSM, and stepper motor control.
• Power supplies: Digital control of power supplies and battery chargers.
• White goods: Appliance control and user interface.
• Lighting control: LED dimming and color control.
• Gaming peripherals

Features

• Pipelined 8051 core: Provides high performance with efficient code execution.
• 32KB Flash memory: Offers ample storage for program code.
• 2.25KB RAM: Provides sufficient memory for data manipulation.
• 12-bit ADC: Enables precise analog-to-digital conversion.
• High-resolution PWM: Allows for precise motor control and lighting dimming.
• Communication interfaces: Includes UART, SPI, and I2C.
• Internal oscillator: Simplifies design by eliminating the need for an external clock source.

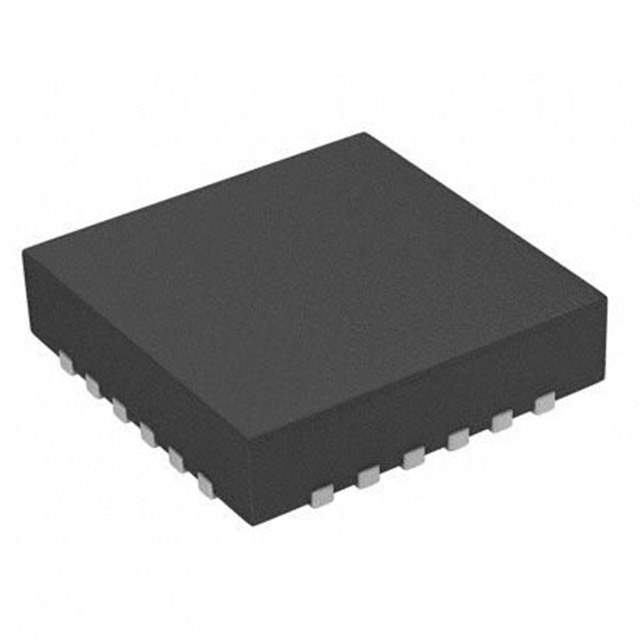

• QFN24 package: Offers a small form factor for space-constrained applications.

Benefits

• High performance: The pipelined 8051 core ensures efficient execution of complex algorithms.
• Low power consumption: Extends battery life in portable applications.
• Integrated peripherals: Reduces the need for external components, simplifying design and lowering cost.
• Flexible communication interfaces: Enables seamless integration with a wide range of devices.
• Small footprint: Allows for integration into space-constrained designs.

Additional Details

The EFM8BB31F32I-B-4QFN24R typically operates with a supply voltage range from 2.2V to 3.6V. The operating temperature range is typically -40°C to +85°C. It includes a programmable counter array (PCA) for flexible timer and PWM generation. Detailed datasheets, application notes, and software examples are available from Silicon Labs.
