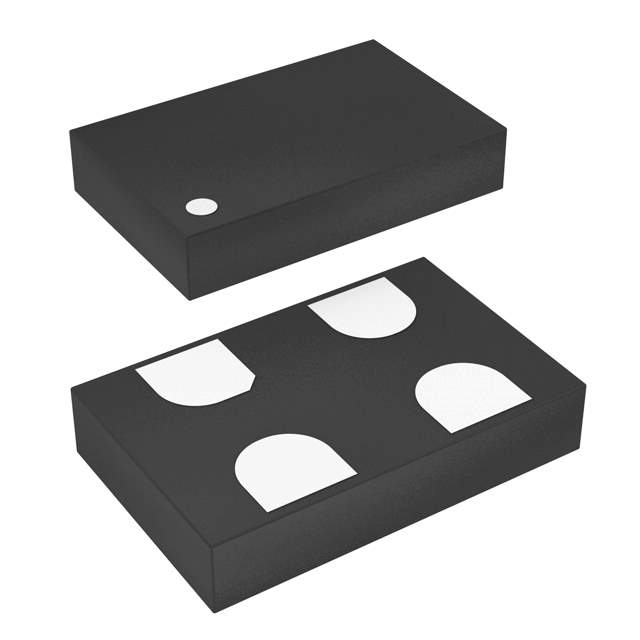

SIT8920BM-32-33E-25.000000 Real Image1 SIT8920BM-32-33E-25.000000 Real Image2
Same model may have multiple batches, images only for reference.
SIT8920BM-32-33E-25.000000 Real Image1 SIT8920BM-32-33E-25.000000 Real Image2
SIT8920BM-32-33E-25.000000 Real Image1 SIT8920BM-32-33E-25.000000 Real Image2
Same model may have multiple batches, images only for reference.

SIT8920BM-32-33E-25.000000

Part No SIT8920BM-32-33E-25.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 25.0000MHZ LVCMOS  /  25 MHz XO (Standard) LVCMOS, LVTTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
SIT8920BM-32-33E-25.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT8920B
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output LVCMOS, LVTTL
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -55°C ~ 125°C
Current - Supply (Max) 4.7mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 4.5mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1473-SIT8920BM-32-33E-25.000000,3417-SIT8920BM-32-33E-25.000000CT-SL
Standard Package 1
Win Source Part Number 1019183-SIT8920BM-32-33E-25.000000
Ultra Librarian 3D Model Ultra Librarian SIT8920BM-32-33E-25.000000 CAD Model

Description

The SiTime SiT8920BM-32-33E-25.000000 is a 25 MHz XO (Standard) oscillator with an enable/disable function.

  • Output: LVCMOS, LVTTL
  • Frequency Stability: ±25ppm
  • Height - Seated (Max): 0.031 inches
  • Temperature Range: -55°C to 125°C
  • Win Source Part Number: 1019183-SIT8920BM-32-33E-25.000000
  • Series: SiT8920B
  • Package: Strip
  • Dimension: 0.197 inches L x 0.126 inches W (5.00mm x 3.20mm)
