Same model may have multiple batches, images only for reference.

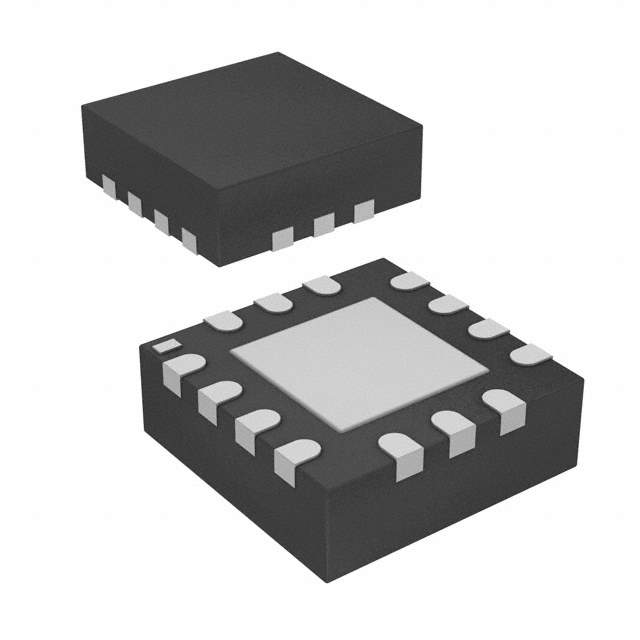

SKY13416-485LF Real Image
Same model may have multiple batches, images only for reference.

SKY13416-485LF

Part No SKY13416-485LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC ANT SW SP6T 0.1-2.7GHZ 14QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Frequency - Lower 100MHz
Frequency - Upper 3GHz
Isolation @ Frequency 29dB @ 2GHz (typ)
Insertion Loss @ Frequency 0.45dB @ 2GHz
IIP3 70dBm (typ)
Circuit SP6T
P1dB 37dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 2.5 V to 4.8 V
Case / Package 14-QFN (2x2)
Win Source Part Number 107426-SKY13416-485LF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SKY13416-485LF CAD Model

Description

The Skyworks Solutions Inc. SKY13416-485LF is an SP6T circuit type electronic component with an impedance of 50 Ohm.

  • Circuit Type: SP6T
  • Impedance: 50 Ohm
  • Frequency Range: 100MHz to 3GHz
  • Isolation: 29dB @ 2GHz (typ)
  • Insertion Loss: 0.45dB @ 2GHz
  • IIP3: 70dBm (typ)
  • RF Type: -
  • Category: RF/IF and RFID
  • Temperature Range: -40°C to 85°C
  • Package: 14-QFN (2x2)
  • Supply and Demand Status: balance
  • Package Contains: 3k pcs
