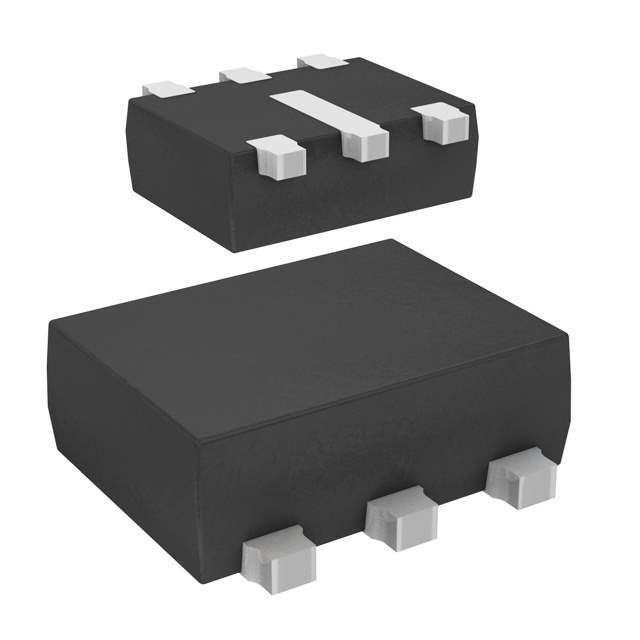

STMicroelectronics ESDA6V1-5P6 Transil™ ESD Protector

The ESDA6V1-5P6 from STMicroelectronics is a state-of-the-art ESD protection device designed to safeguard sensitive electronic components against electrostatic discharge (ESD) threats. This Transil™ ESD suppressor is a critical component for modern electronics where high-speed data lines and sensitive circuits are prevalent and require robust protection.

The device is packaged in a compact SOT-666 package, which is ideal for space-constrained applications. Despite its small size, it offers a high level of protection with a clamping voltage that is low enough to protect sensitive circuits, yet strong enough to handle ESD strikes effectively.

Key Features

• Low Clamping Voltage: The ESDA6V1-5P6 has a low clamping voltage, which ensures that the voltage seen by the protected device during an ESD event is kept to a minimum, thus preventing damage to the device.
• Multi-Line Protection: This device is capable of protecting up to 5 data lines simultaneously, making it an efficient solution for multi-line protection in compact electronic assemblies.
• High ESD Protection Level: It offers a high level of ESD protection, compliant with the IEC 61000-4-2 standard, which can withstand ESD surges up to 15 kV (air discharge) and 8 kV (contact discharge).
• Low Leakage Current: The low leakage current characteristic of the ESDA6V1-5P6 ensures minimal impact on the normal operation of the protected circuit, preserving signal integrity and reducing power consumption.
• Fast Response Time: The device reacts almost instantaneously to ESD strikes, providing immediate protection to the attached circuitry and preventing damage from transient events.

Applications

The ESDA6V1-5P6 is suitable for a wide range of applications where ESD protection is crucial. It is commonly used in:

• USB interfaces
• HDMI ports
• Smartphone and tablet I/O interfaces
• Serial and parallel ports
• Other high-speed data lines in consumer electronics

With its combination of high-level ESD protection, small form factor, and multi-line coverage, the ESDA6V1-5P6 from STMicroelectronics is an excellent choice for designers looking to enhance the reliability and longevity of their electronic products.
