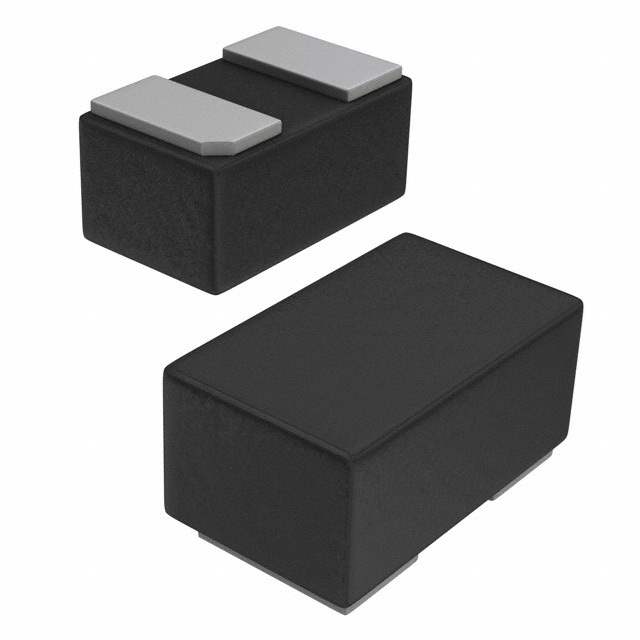

STMicroelectronics ESDALC5-1BT2Y ESD Protection Device

The ESDALC5-1BT2Y from STMicroelectronics is a high-performance ESD protection device designed to safeguard high-speed data lines and other sensitive circuits from the potentially damaging effects of Electrostatic Discharge (ESD). This device is specifically tailored to provide a robust shield against ESD, ensuring the reliability and longevity of electronic components in various applications.

Key Features:

• Low Clamping Voltage: The ESDALC5-1BT2Y has a low clamping voltage, which is crucial in protecting sensitive electronics from voltage spikes caused by ESD events.
• High ESD Protection Level: It offers a high level of protection, capable of withstanding ESD discharges up to 15 kV (air discharge) and 8 kV (contact discharge) as per the IEC 61000-4-2 standard.
• Single Line Protection: Designed to protect one data line, it provides a focused approach to ESD protection, making it ideal for high-speed interfaces.
• Low Capacitance: With a very low capacitance, the device ensures minimal signal attenuation, which is particularly important for maintaining the integrity of high-speed data transmission.
• Small Package: The ESDALC5-1BT2Y comes in a tiny SOT23-3L package, making it suitable for space-constrained applications without compromising on performance.
• RoHS Compliant: This device adheres to environmental standards and is RoHS compliant, catering to eco-friendly requirements.

Applications:

The ESDALC5-1BT2Y is versatile and can be used in a wide range of applications, including:

• USB 2.0, 3.0, and 3.1 interfaces
• HDMI, DisplayPort, and other high-speed data lines
• Mobile phones, tablets, and other portable devices
• Consumer electronics such as TVs, set-top boxes, and gaming consoles
• Industrial controls and automotive electronics

With its combination of high ESD protection, low capacitance, and small form factor, the ESDALC5-1BT2Y is an excellent choice for designers looking to enhance the durability and performance of their electronic products. STMicroelectronics' commitment to quality and reliability ensures that this ESD protection device will meet the stringent demands of modern electronic devices.
