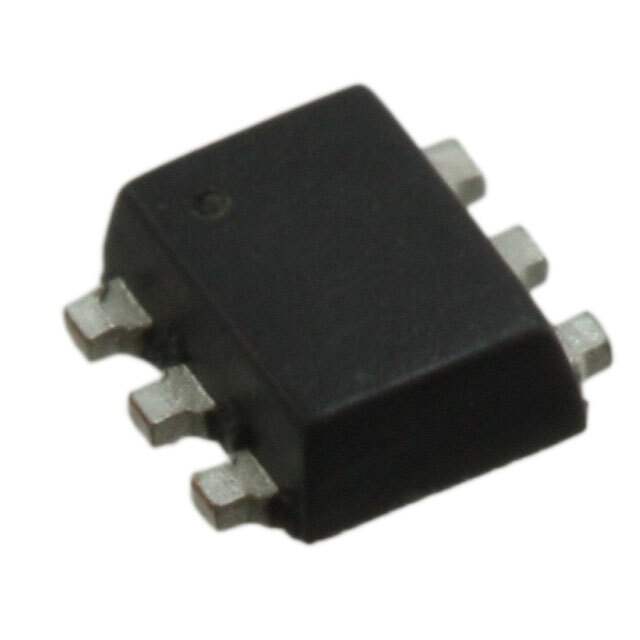

ESDALC6V1-5P6 Transient Voltage Suppressor by STMicroelectronics

The ESDALC6V1-5P6 is a high-quality transient voltage suppressor (TVS) designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This robust device is specifically engineered to protect sensitive electronic circuits from electrostatic discharges (ESD), electrical fast transients (EFT), and other voltage-induced transient events.

Key Features:

• Low Clamping Voltage: The device offers a low clamping voltage, ensuring that sensitive components are well-protected from the potentially damaging effects of transient overvoltage conditions.
• High Surge Capability: With its ability to handle high surge currents, the ESDALC6V1-5P6 is an excellent choice for protecting high-speed data lines and other vulnerable circuits.
• Low Leakage Current: The device has a very low leakage current, minimizing power loss and ensuring that it does not interfere with the normal operation of the protected circuit.
• 5 Bidirectional Transil Functions: It includes five bidirectional Transil diode functions, which provide protection for five data or signal lines with just one component.
• SOT-666 Package: The compact SOT-666 package allows for efficient use of board space, making it ideal for space-constrained applications.
• ISO 7637-3 and IEC 61000-4-2 Compliance: The device meets the stringent requirements of both ISO 7637-3 and IEC 61000-4-2 standards, ensuring reliable protection against automotive electrical disturbances and electrostatic discharges, respectively.

Applications:

The ESDALC6V1-5P6 is suitable for a wide range of applications, including:

• USB 2.0, 3.0, and 3.1 interfaces
• HDMI and DisplayPort interfaces
• Serial and parallel ports
• Mobile phones and other portable devices
• Microcontroller-based applications

This TVS device is a testament to STMicroelectronics' commitment to providing advanced circuit protection solutions that meet the demands of modern electronic systems. With its combination of performance, reliability, and versatility, the ESDALC6V1-5P6 is an excellent choice for designers looking to safeguard their products against the rigors of electrical and environmental stress.
