The ESDZV5-1BU2 is a state-of-the-art ESD protection device designed and manufactured by STMicroelectronics, a global semiconductor leader. This product is specifically engineered to safeguard sensitive electronic circuits against electrostatic discharges (ESD), which can occur during the manufacturing process or from user interaction with electronic devices.

Key Features

• ESD Protection: The ESDZV5-1BU2 offers robust protection against ESD, ensuring that electronic components remain safe from sudden and extreme voltage spikes.
• Low Clamping Voltage: This device has a low clamping voltage, which is crucial for the protection of sensitive circuitry in high-speed data lines and other vulnerable applications.
• Single Line Protection: Designed to protect a single data or power line, this component is versatile for various applications where space and simplicity are key.

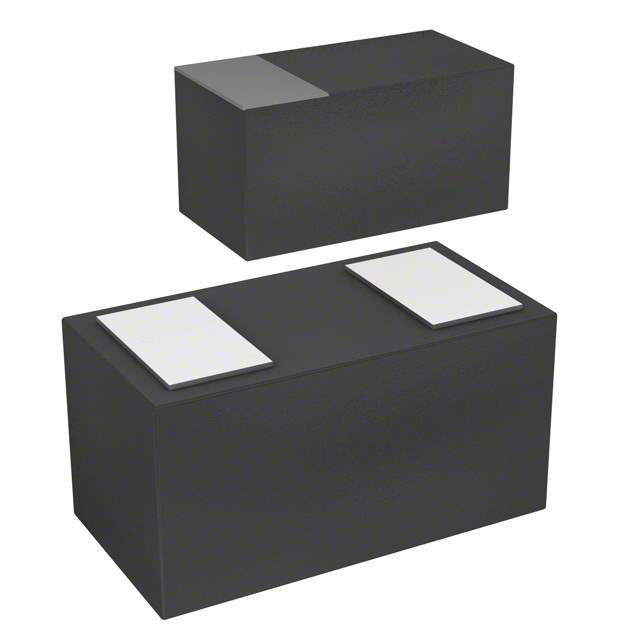

• Small Package Size: The ESDZV5-1BU2 comes in a compact SOD-523 package, making it suitable for space-constrained applications without compromising on performance.
• High Reliability: Manufactured by STMicroelectronics, the device is built with high-quality standards, ensuring reliability and longevity in the field.

Applications

The ESDZV5-1BU2 is ideal for a wide range of applications where ESD protection is critical. This includes:

• Mobile Devices
• Personal Computers and Peripherals
• Consumer Electronics
• Networking Equipment
• Portable Medical Devices
• Industrial Controls

Technical Specifications

The technical specifications of the ESDZV5-1BU2 ensure that it meets the rigorous demands of modern electronic devices:

• Stand-off Voltage: 5V
• Max. Reverse Leakage Current: 1 μA at 5V
• ESD Discharge Protection: Up to 30 kV (air discharge)
• Package: SOD-523

With the ESDZV5-1BU2, STMicroelectronics provides a highly effective solution for protecting electronic equipment from the potentially damaging effects of ESD, ensuring that your devices operate reliably and with longevity.
