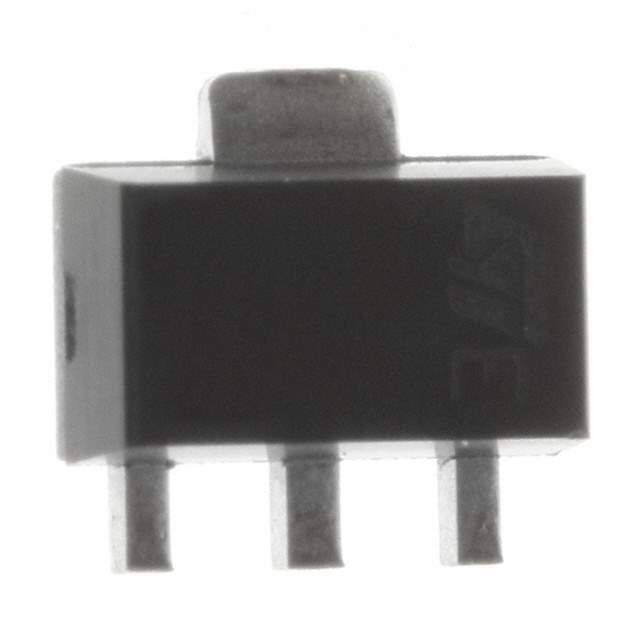

L78L15ACUTR

Part No L78L15ACUTR
Manufacturer STMicroelectronics
Catalog PMIC - Voltage Regulators - Linear
Description Standard Regulator Pos 15V 0.1A 4-Pin(3+Tab) SOT-89 T/R / IC REG LDO 15V 0.1A SOT89-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 15V
Output Current 100mA
Operating Supply Current 6mA to 6.5mA
PSRR 39dB (120Hz)
Control Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 15V
Voltage - Dropout (Typical) 1.7V @ 40mA
Mounting SMD (SMT)
Case / Package SOT-89-3
Win Source Part Number 007578-L78L15ACUTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name L78L
Introduction Date July 22, 2003
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian L78L15ACUTR CAD Model

Description

Overview of STMicroelectronics L78L15ACUTR Voltage Regulator

The L78L15ACUTR is a linear voltage regulator integrated circuit from STMicroelectronics, designed to deliver a fixed output voltage of 15V with a current delivery capability of up to 100mA. This component is part of the L78L series, which is known for providing stable and reliable voltage regulation in a wide range of electronic applications.

Key Features

  • Output Voltage: The L78L15ACUTR provides a precise 15V output, which is essential for circuits that require a stable voltage level for optimal performance.
  • Current Output: Capable of supplying up to 100mA, this regulator can support small to medium power needs, making it suitable for low-power devices and applications.
  • Thermal Overload Protection: The device includes safety features such as thermal overload protection, which helps to prevent damage from overheating by shutting down the regulator if the internal temperature exceeds safe operating limits.
  • Short Circuit Protection: In the event of a short circuit, the regulator will limit the current to a safe level, thereby protecting the circuit components from potential damage.
  • SO-8 Package: The L78L15ACUTR comes in a small outline SO-8 package, which is ideal for space-constrained applications and provides a compact solution for PCB layouts.

Applications

The L78L15ACUTR voltage regulator is suitable for a variety of electronic devices and projects, including:

  • Consumer Electronics: It can be used in televisions, radios, and other household gadgets that require a regulated power supply.
  • Industrial Equipment: The regulator's robustness makes it a good fit for industrial control systems and instrumentation that demand consistent voltage levels.
  • Automotive Applications: Its ability to handle temperature variations makes it suitable for automotive electronics that operate in harsh environments.
  • Power Management Solutions: The L78L15ACUTR can be integrated into power supply circuits, battery chargers, and energy management systems.

With its combination of features and protections, the L78L15ACUTR from STMicroelectronics is a versatile choice for designers looking to ensure a stable power supply in their electronic circuits.
