The LD39020ADTPU30R is a high-performance, low drop-out (LDO) voltage regulator from STMicroelectronics, designed to deliver a stable and precise output voltage. This regulator is part of the LD39020 series, known for its low noise operation and high power supply rejection ratio (PSRR), making it an excellent choice for sensitive analog circuits and RF applications.

With a fixed output voltage of 3.0V, the LD39020ADTPU30R is capable of supplying up to 200mA of output current. Its low dropout voltage ensures efficient operation even when the input voltage is close to the output voltage, which is particularly beneficial in battery-powered devices where maximizing battery life is critical.

The device features a typical quiescent current of just 50µA, which significantly reduces power consumption in idle or standby modes. Additionally, the LD39020ADTPU30R offers thermal shutdown and current limit protections, safeguarding the device and the load from damage due to overheating or excessive current conditions.

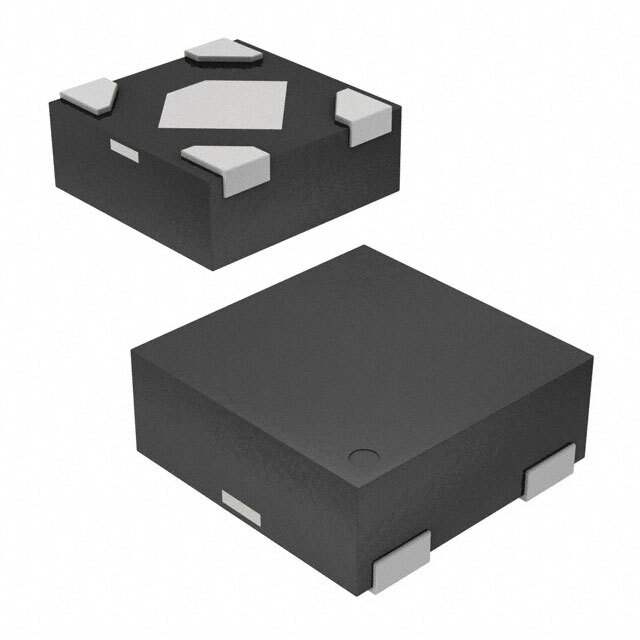

The LD39020ADTPU30R comes in a compact DFN6 (1.2x1.3) package, which is ideal for space-constrained applications. Its small footprint, combined with a low minimum input voltage of 2.5V, makes it suitable for a wide range of portable electronics, including smartphones, tablets, and other handheld devices.

This LDO regulator is designed to work with a very low dropout voltage and has a fast transient response, ensuring stable voltage supply even during rapid changes in load. The LD39020ADTPU30R also supports ceramic capacitor stability, which allows for the use of smaller, more cost-effective capacitors while maintaining stable operation.

In summary, the LD39020ADTPU30R from STMicroelectronics is a reliable and efficient solution for applications requiring a stable 3.0V power supply. Its low power consumption, robust protection features, and compact size make it an excellent choice for designers looking to optimize their power management solutions.
