The LD56100DPU33R is a high-performance, low-dropout voltage regulator (LDO) designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This LDO is specifically engineered to deliver a stable and precise 3.3V output voltage, making it an ideal choice for sensitive electronic applications requiring consistent power supply.

Key Features

• Output Voltage: Provides a fixed output voltage of 3.3V, which is suitable for a wide range of digital and analog circuits.
• High Accuracy: Ensures tight voltage regulation with an accuracy of ±2%, maintaining stable performance under varying load conditions.
• Low Dropout: Features a low dropout voltage, allowing the regulator to operate efficiently even when the input voltage is close to the output voltage.
• Current Capacity: Offers an output current of up to 1A, catering to applications with moderate power demands.
• Thermal Protection: Includes built-in thermal shutdown and current limiting features to protect the device and the load from damage due to overheating or excessive current.
• Low Quiescent Current: Exhibits low quiescent current, which minimizes power consumption when in standby mode, making it suitable for battery-powered devices.

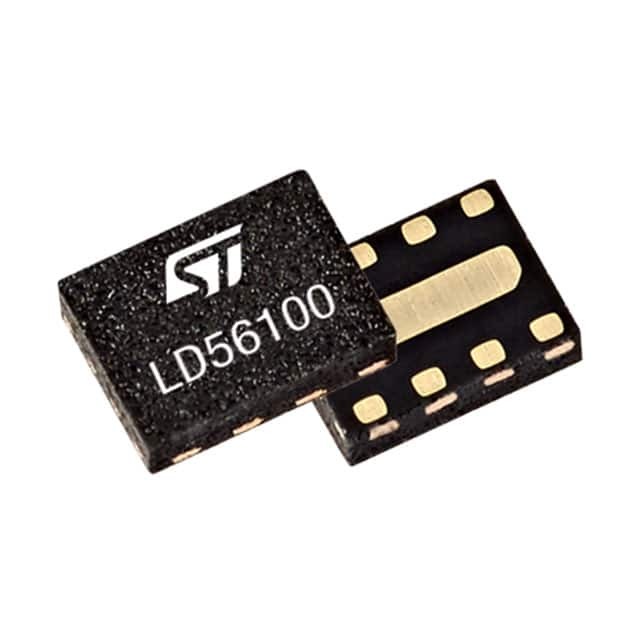

• Package: Available in a compact DFN6 (3x3 mm) package, ideal for space-constrained applications.

Applications

The LD56100DPU33R is versatile and can be used in various applications, including but not limited to:

• Portable and battery-powered devices
• Microcontroller power supply
• Consumer electronics
• Networking and telecommunications equipment
• Healthcare and medical devices

Conclusion

With its precise voltage regulation, low dropout, and robust protection features, the LD56100DPU33R from STMicroelectronics is a reliable power solution for designers looking to enhance the performance and longevity of their electronic products. Its small form factor and efficient operation make it an excellent choice for a broad range of applications where space and power efficiency are critical.
