STMicroelectronics NAND01GW3A2AN6E NAND Flash Memory

The NAND01GW3A2AN6E is a high-performance NAND Flash memory device produced by STMicroelectronics, a leader in the semiconductor industry. This memory product is designed to address the growing demand for reliable data storage in a compact form factor, making it suitable for a wide range of applications, including consumer electronics, mobile devices, solid-state drives, and embedded systems.

With a storage capacity of 1 Gbit, the NAND01GW3A2AN6E provides ample space for firmware, boot code, and data storage. It operates on a supply voltage range of 2.7V to 3.6V, which allows for compatibility with various electronic devices and systems. The memory chip features a page size of 2112 bytes, consisting of 2048 bytes of main area and 64 bytes of spare area, which is optimal for error correction code (ECC) algorithms to enhance data integrity.

The NAND01GW3A2AN6E utilizes a parallel interface for data transfer, offering high-speed read and write operations that are essential for applications requiring quick access to stored information. Its fast programming capabilities are complemented by a typical page program time of 200 µs and a block erase time of 2 ms, ensuring efficient operation and rapid updating of stored data.

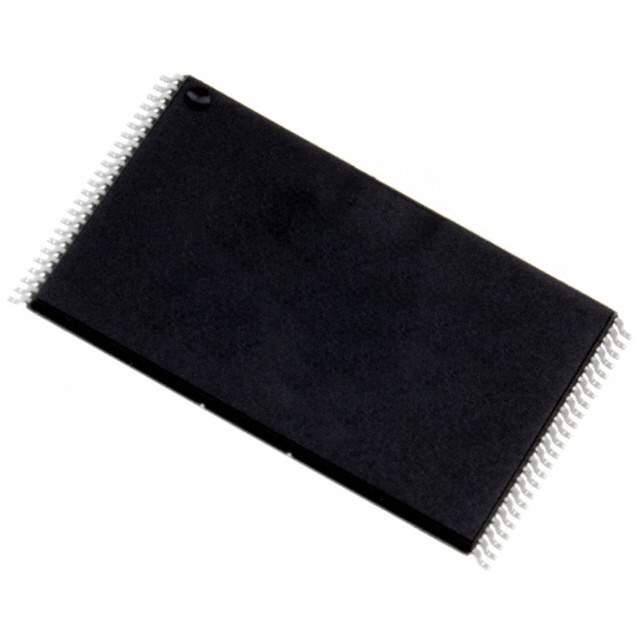

This NAND Flash memory device from STMicroelectronics is available in a TSOP48 package, which is widely accepted in the industry and provides a reliable and robust physical connection to a printed circuit board (PCB). The package dimensions and pin configuration are designed to facilitate easy integration into existing designs, minimizing the need for significant hardware changes.

In summary, the NAND01GW3A2AN6E represents a dependable storage solution that combines high capacity, fast performance, and low power consumption. Its design and technical specifications make it an excellent choice for designers and engineers looking to implement advanced memory solutions in their next-generation electronic products.
