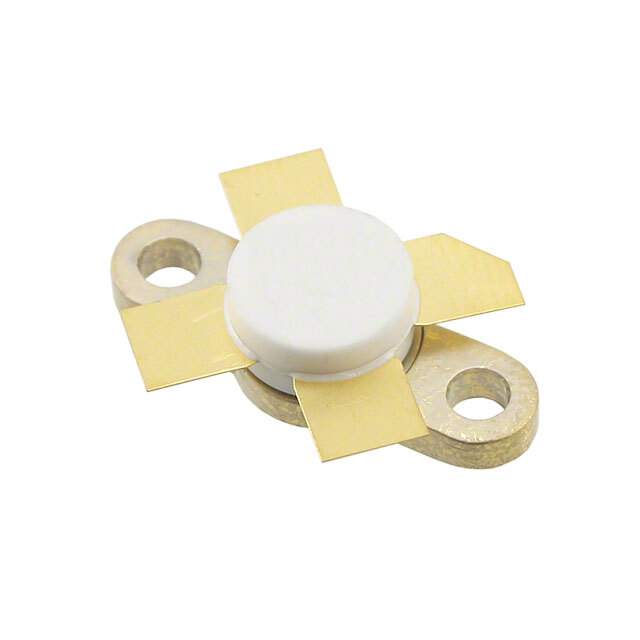

The SD1446 is a high-performance RF power transistor from STMicroelectronics, designed to operate in the HF band. This product is a staple in RF power amplification applications, particularly in the field of amateur radio communications, commercial and military radio systems. The SD1446 is well-suited for applications requiring high reliability and robustness, making it a popular choice among professionals and enthusiasts alike.

Key Features

• Frequency Range: The SD1446 operates effectively in the 2-30 MHz range, providing versatility for various applications in the HF band.
• Power Output: It is capable of delivering up to 70 Watts of continuous wave power, ensuring strong signal transmission for clear and reliable communication.
• High Gain: This transistor offers a high power gain, typically 13 dB, which allows for efficient signal amplification with minimal input power.
• Efficiency: The SD1446 is designed with efficiency in mind, featuring a high efficiency of 35-50%, reducing power loss and operating costs.
• Ruggedness: Built to withstand tough conditions, the SD1446 can handle a mismatched load VSWR @ 5:1 all phase angles.

Applications

• Amateur and SSB (Single Side Band) radio
• Commercial and Military HF radios
• RF power amplifiers
• Linear applications

Quality and Reliability

STMicroelectronics is renowned for its commitment to quality and the SD1446 is no exception. This device is manufactured to the highest standards to ensure reliable performance and longevity. Its robust construction makes it suitable for demanding environments where consistent operation is critical.

Environmental Compliance

The SD1446 complies with RoHS (Restriction of Hazardous Substances) directives, reflecting STMicroelectronics' dedication to environmental responsibility. This ensures that the product is free from harmful substances, making it safer for both users and the planet.
