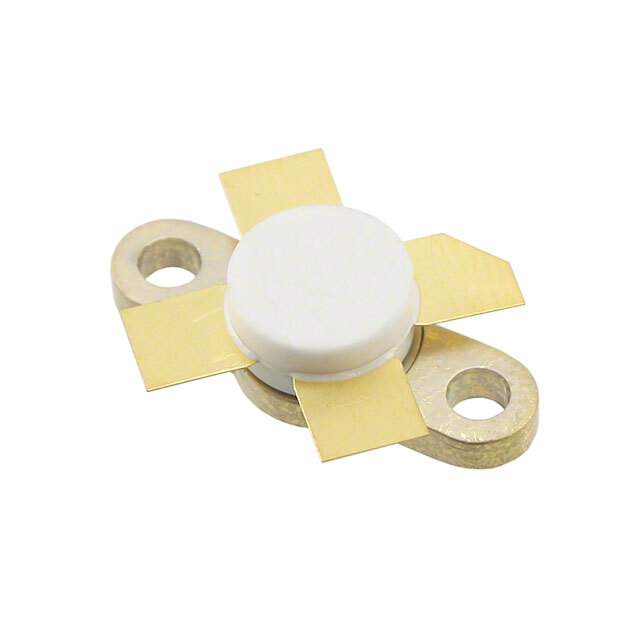

Product Overview: SD2902 RF Power Transistor

The SD2902 is a high-performance RF power transistor from STMicroelectronics, designed to deliver outstanding power and efficiency in a wide range of high-frequency applications. This device is part of ST's STPOWER family, known for their reliability and state-of-the-art technology in power electronics.

Key Features

• Frequency Performance: The SD2902 operates at a frequency up to 30 MHz, making it suitable for HF/VHF applications, including professional RF applications and broadcast transmitters.
• Power Output: With a high power output capability, it can deliver up to 150W of continuous wave power, ensuring robust performance for demanding applications.
• High Gain: The transistor provides excellent gain performance, which is critical for achieving high efficiency in power amplifiers.
• Thermal Efficiency: The device is encapsulated in a ceramic package that offers superior thermal stability and longevity, enhancing the overall reliability of the system it is integrated into.

Applications

The SD2902 is designed for a variety of applications that require high power and efficiency at RF frequencies. Its typical applications include:

• RF power amplifiers for broadcast transmitters
• Industrial, scientific, and medical (ISM) applications
• HF/VHF communications systems
• Professional mobile radio

Quality and Reliability

STMicroelectronics is committed to delivering products that meet the highest standards of quality and reliability. The SD2902 is manufactured in state-of-the-art facilities, ensuring that each transistor meets ST's rigorous specifications for performance and durability. Customers can trust the SD2902 to provide consistent, long-term operation even in the most challenging environments.

Support and Resources

STMicroelectronics provides comprehensive technical support and resources for the SD2902, including datasheets, application notes, and design tools. Engineers can access a wealth of information to assist in the integration and optimization of the SD2902 in their designs, ensuring a smooth development process from concept to production.
